TROOPER
Digital User Manual
Battery (integrated)

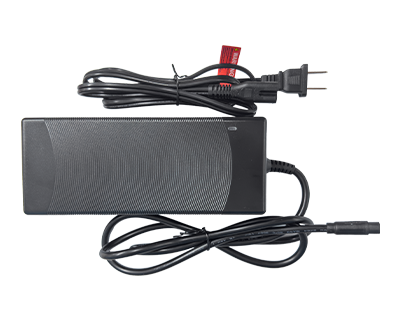

Charger

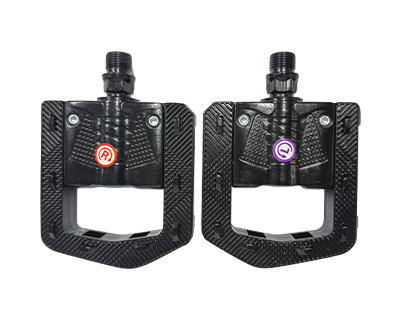

Pedals
Front & Rear Reflectors
Bell

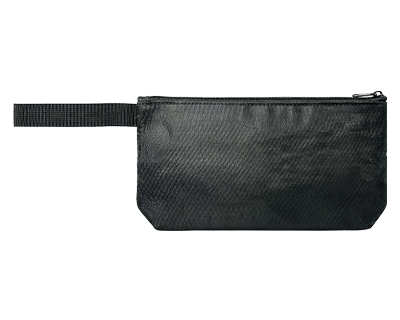

Tool Kits
Save $100
750W/85Nm
Motor Power
28 MPH
Top Speed
65 Miles
Max Range
440 Lbs
Max Payload
20"x4.0"
Tire Size
Torque Sensor
Sensor
750W/85Nm
Motor Power
28 MPH
Top Speed
65 Miles
Max Range
440 Lbs
Max Payload
20"x4.0"
Tire Size
Torque Sensor
Sensor
TROOPER
Unfold the Power
Sale price$1,199.00Regular price
$1,299.00
US Stock, Order Today, Receive Before April 19, 2026
Pair Well With
750W/85Nm
Motor Power
28 MPH
Top Speed
65 Miles
Max Range
440 Lbs
Max Payload
20"x4.0"
Tire Size
Torque Sensor
Sensor
30-Day Trial
2-Year Warranty
Free Shipping to the Lower 48
Ship from USA.

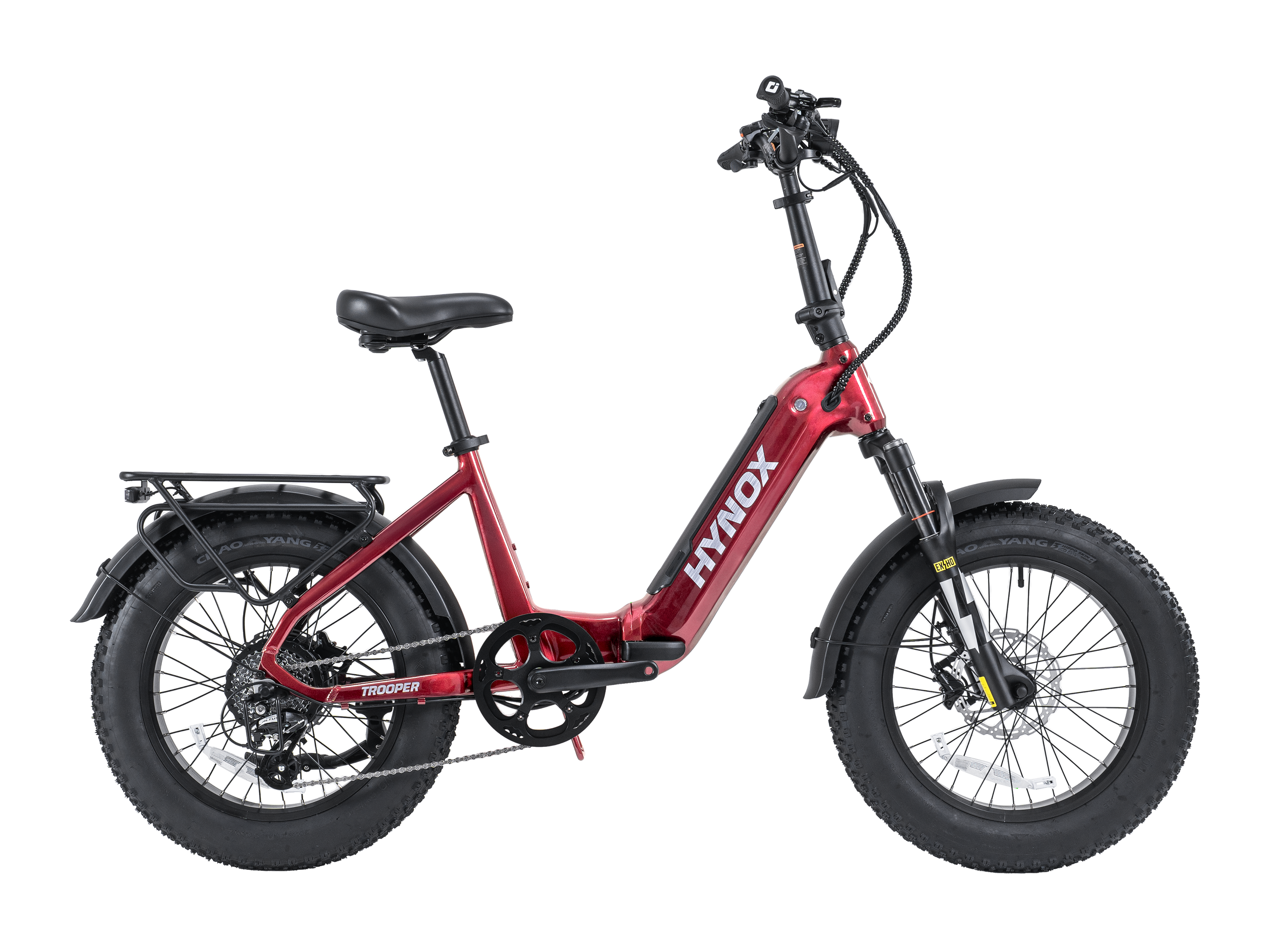

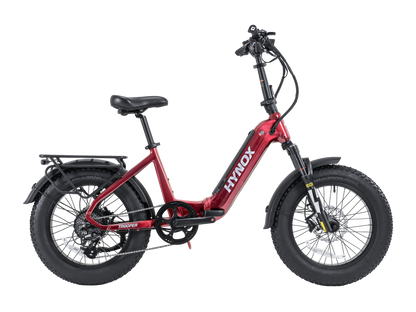

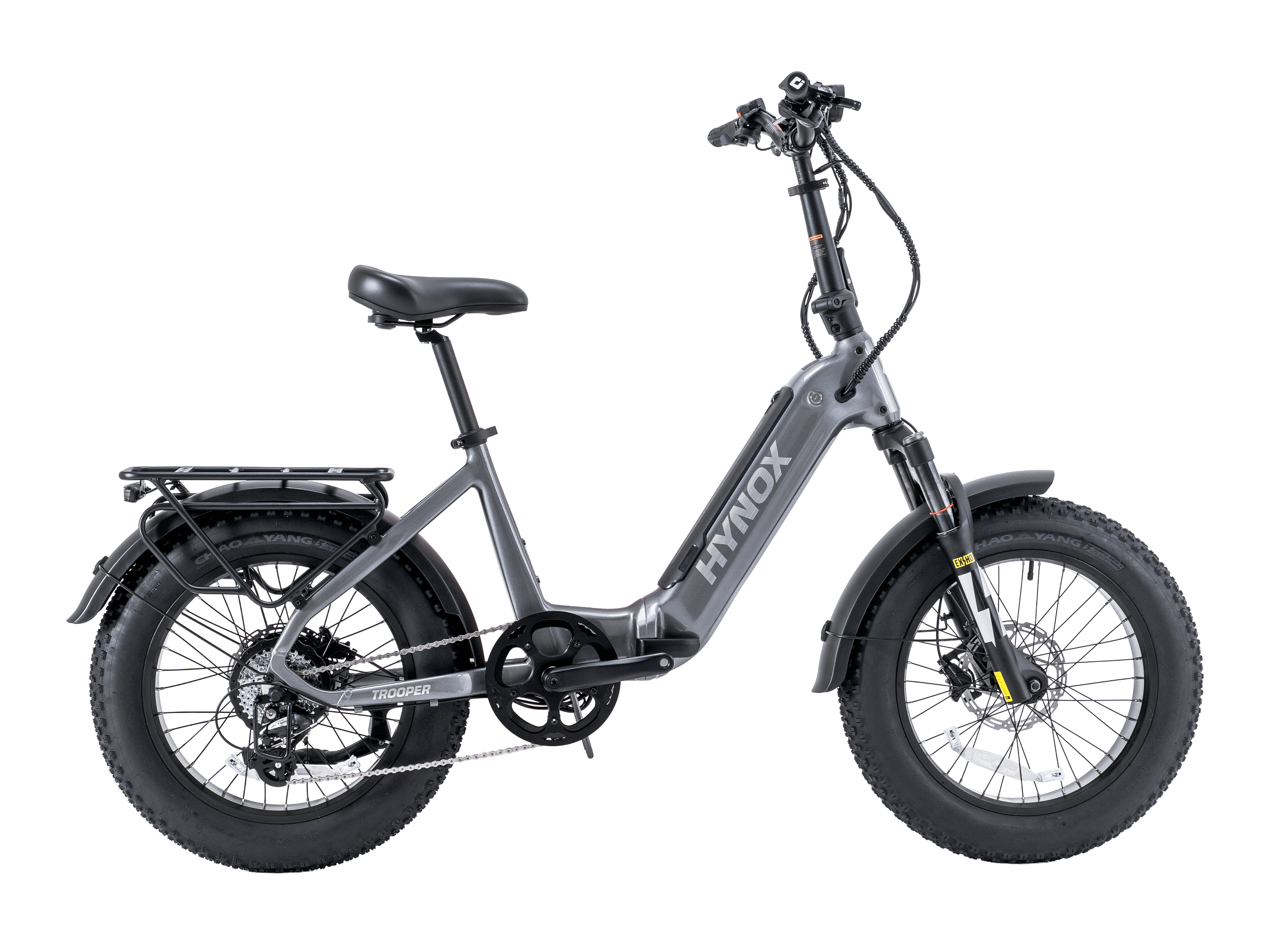

TROOPER

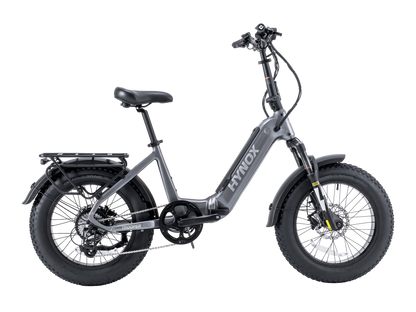

Mountain Gray / One Size
Sale price$1,199.00Regular price
$1,299.00
Power Every Adventure
A rugged folding fat-tire eBike built tough for powerful performance and long-range capability, yet engineered to deliver a smooth and effortless ride from city streets to weekend escapes.
Stable, Nimble, and Upright
Refined geometry for total confidence and comfort. The Trooper’s geometry combines a relaxed 68° head tube angle with an extended 1167mm wheelbase for outstanding stability. A precision-tuned 66mm trail keeps the 20"×4.0" fat tires feeling surprisingly nimble and responsive, while a low 420mm step-thru frame promotes a naturally upright, strain-free riding position.
Superior Braking Power
Featuring Logan hydraulic disc brakes with dual-piston calipers. The heavy-duty 180mm x 2.3mm rotors provide exceptional durability and heat dissipation, ensuring reliable, consistent braking performance even under the maximum load of 440lbs.

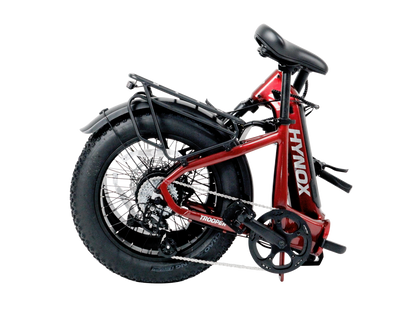

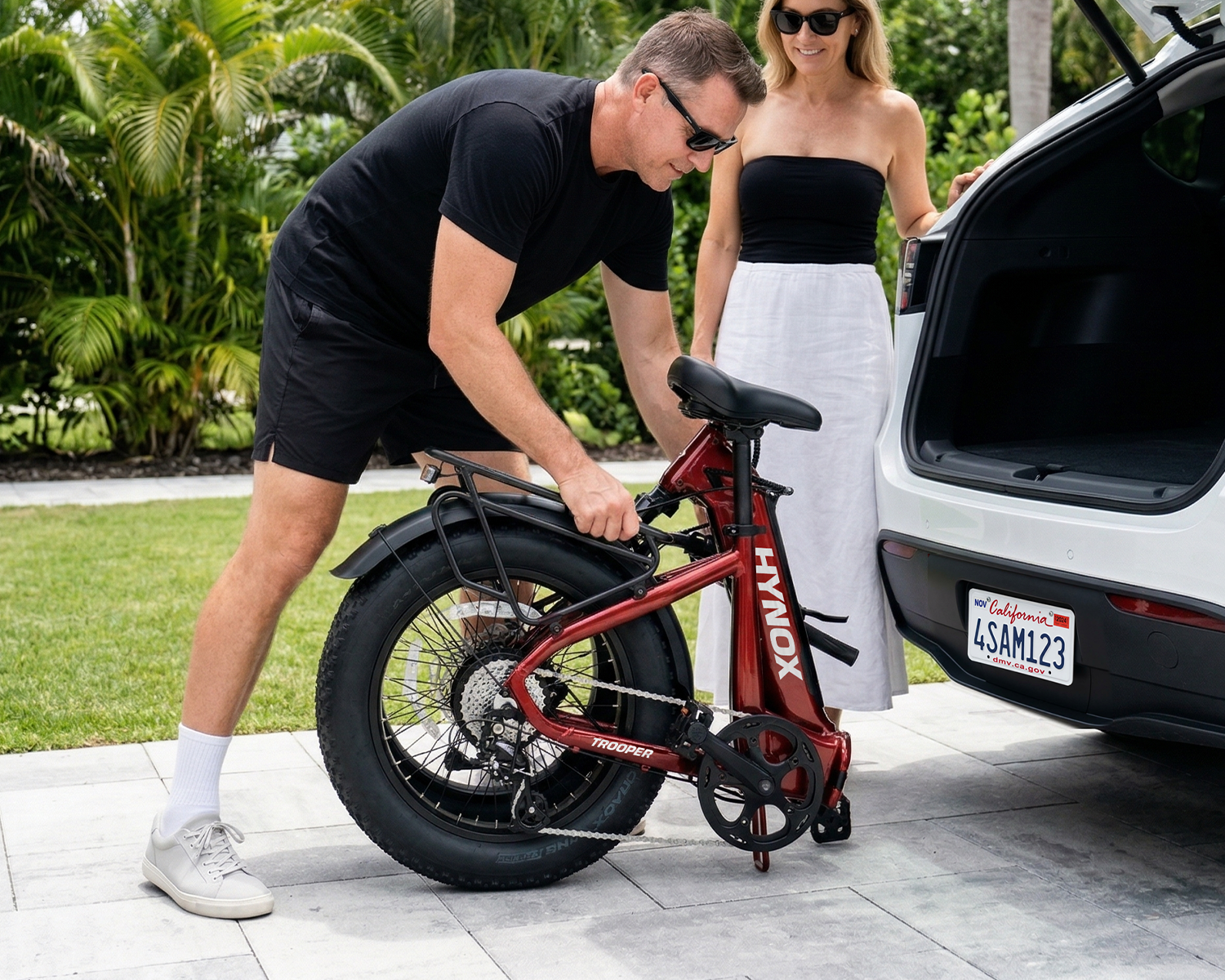

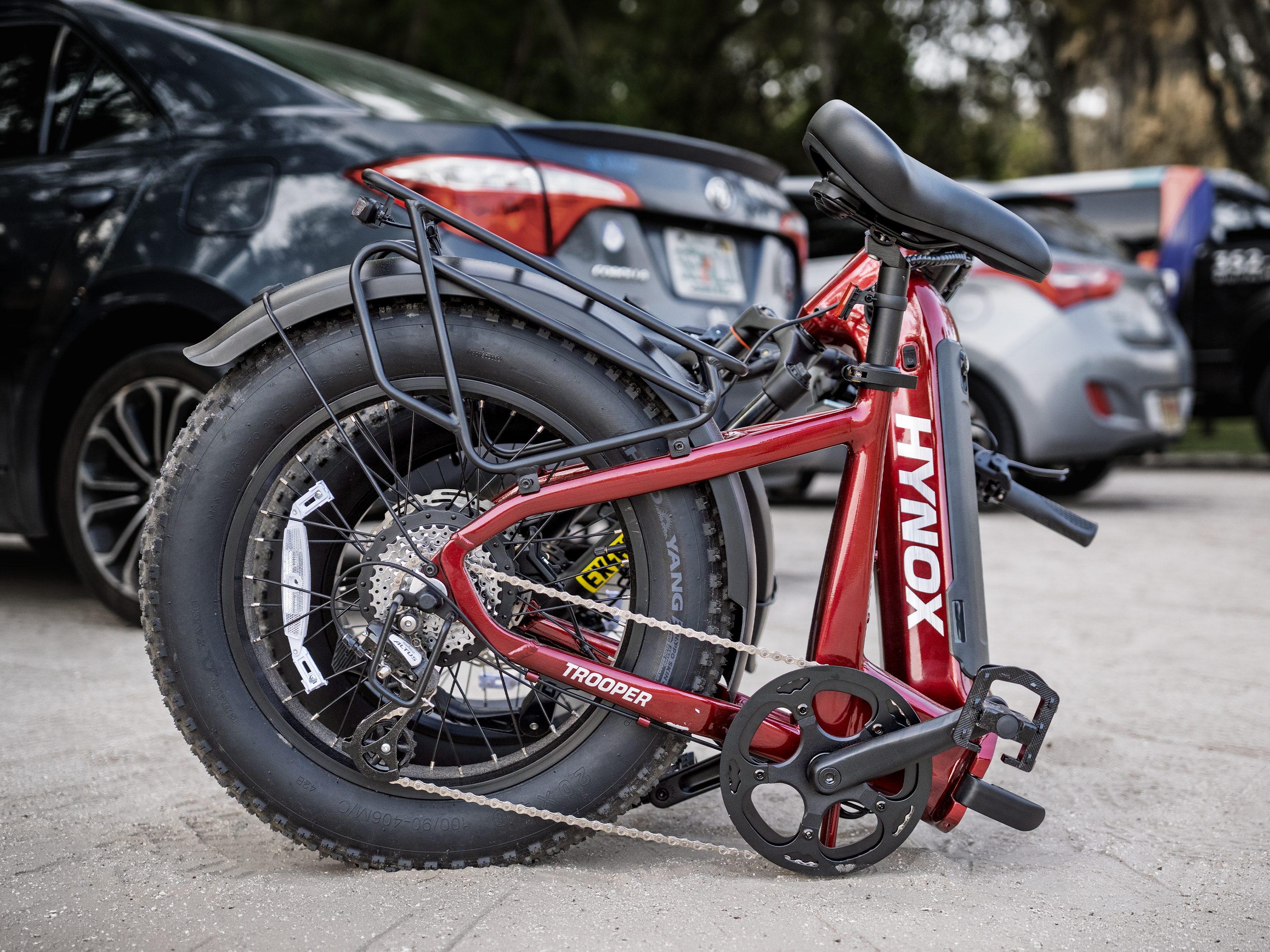

Compact Folding for Effortless Transport
The perfect blend of full-sized power and go-anywhere portability. Folded to a compact 41” x 22” x 29”, this bike fits seamlessly into car trunks for road trips and tucks away for space-saving home storage.

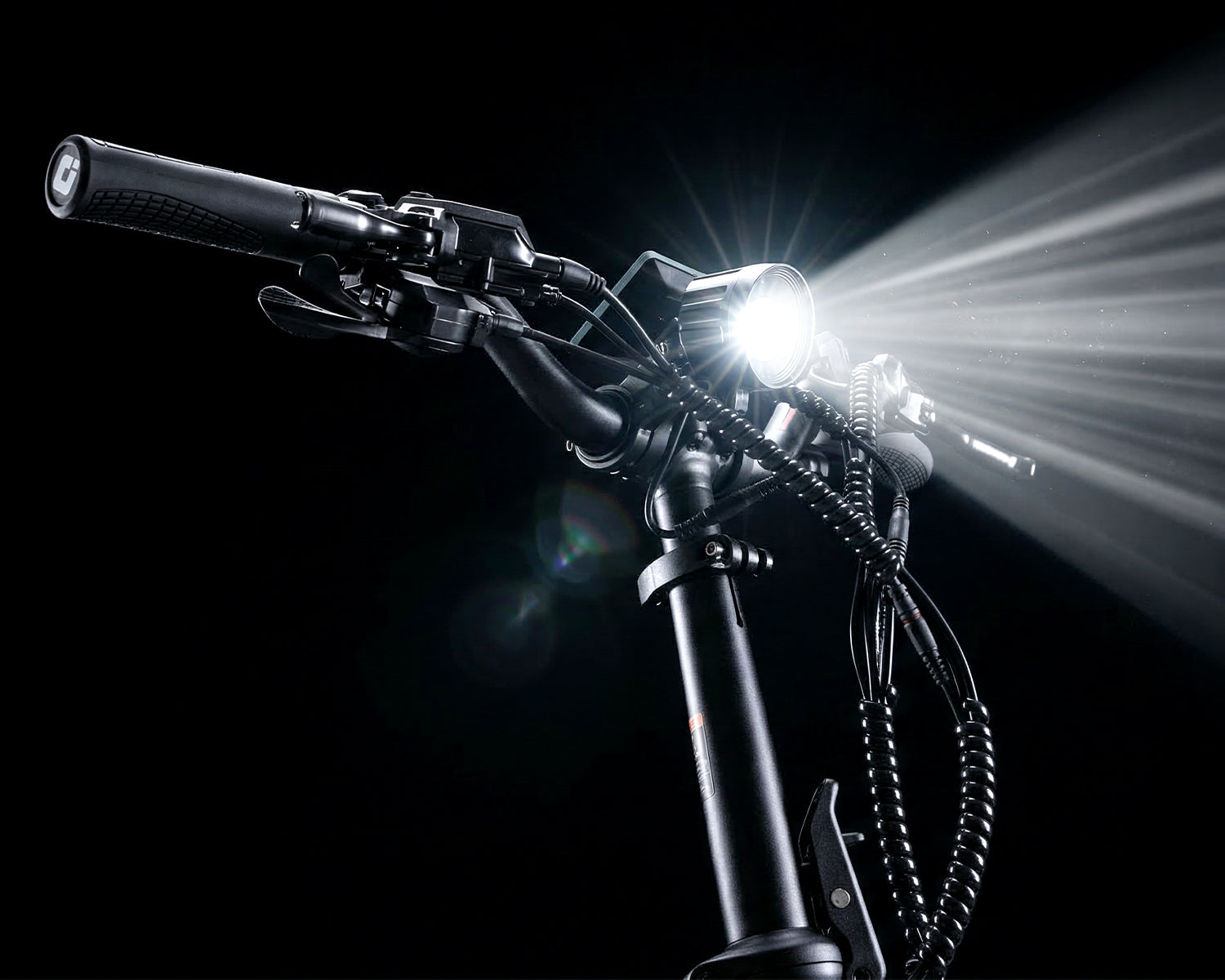

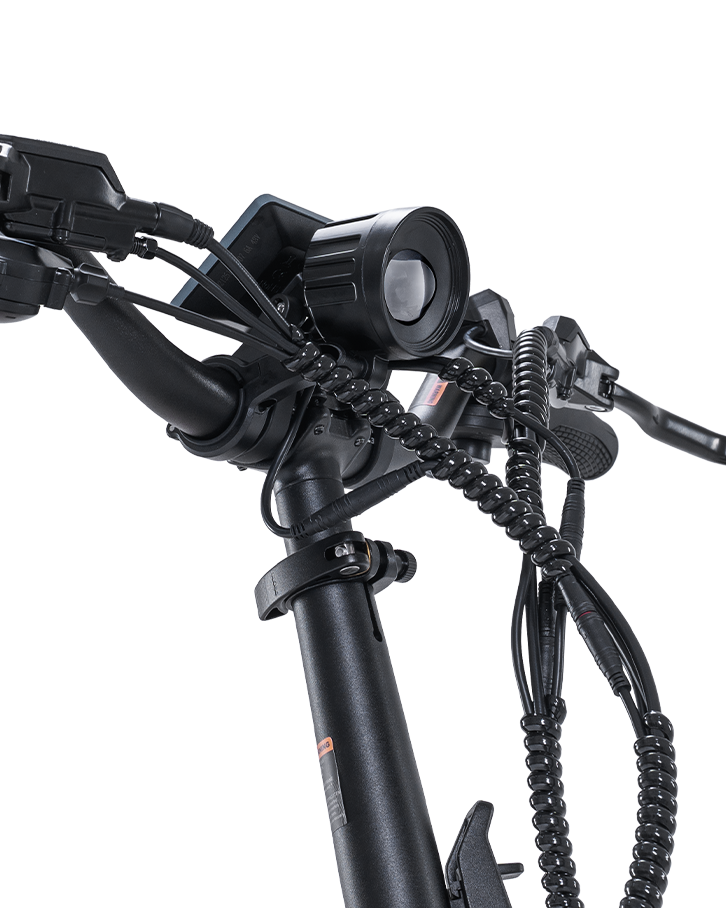

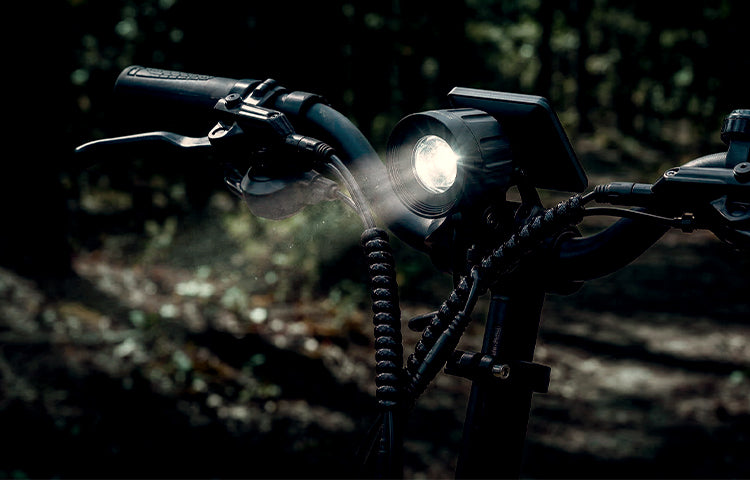

130 Lux Headlight with High/Low Beam
Your path, perfectly lit. Instantly switch between a focused, glare-free low beam for city riding and a powerful high beam for extended visibility at the touch of a button. Complemented by a high-brightness taillight with integrated turn signals, it ensures you can see further while remaining clearly visible to others in any environment.

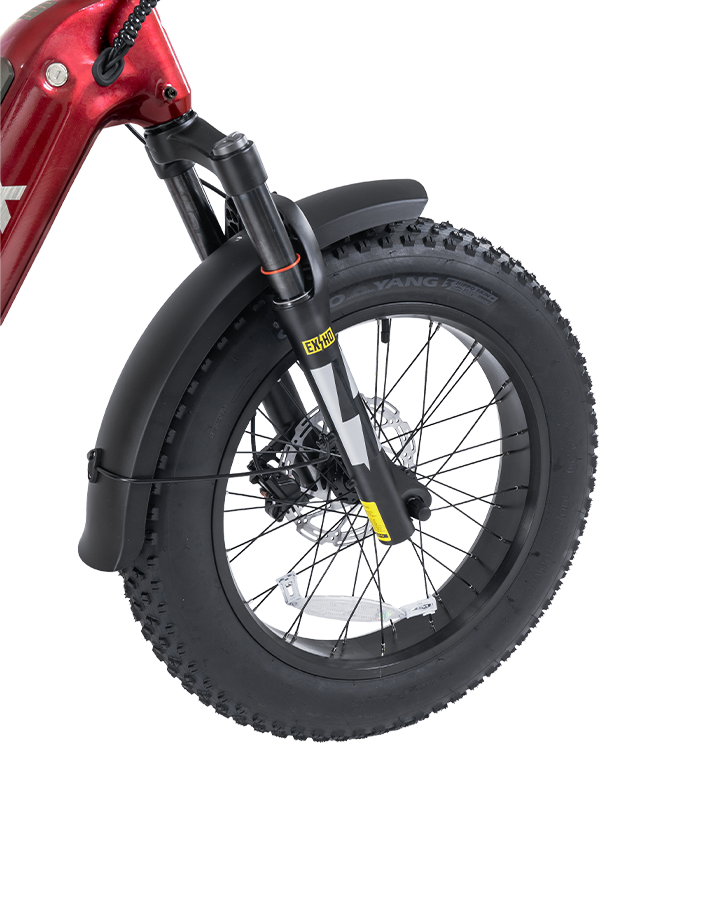

EXSHO 80mm Hydraulic Suspension
Crush both city streets and brutal off-road trails with the EXSHO 80mm hydraulic suspension. Engineered for high-impact shock absorption, it delivers rock-solid stability on any surface. From jagged potholes to rugged dirt tracks, this heavy-duty system provides the ultimate balance of comfort and control. Built to endure, built to perform—no matter where the road ends.
130 Lux, High/Low Beam Front Light
Dominate the road with a powerful 130 Lux dual-beam system. Featuring a dedicated High/Low Beam switch, you can instantly toggle between a wide-angle low beam for urban safety and a high-penetration long beam for dark stretches. Hard-hitting brightness and precision control, built to ensure you see everything and stay visible in any environment.

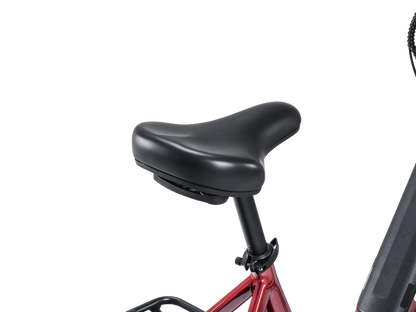

Ergonomic Saddle
The 8.6" wide high-density memory foam saddle delivers an elite riding experience, blending firm support with ultimate comfort. Its expansive surface area is specifically engineered to alleviate pressure, ensuring a premium, pain-free journey even on the longest rides. Experience a seat that supports your posture and invites you to explore further in total relaxation.
Hynox App
Connect your ride with the HYNOX App for total control via Bluetooth. Seamlessly power your bike on or off, toggle lights, and precision-tune your performance by setting custom speed limits for each PAS level and the throttle. With automatic ride tracking and OTA firmware updates, your bike stays smarter and more optimized with every sync.

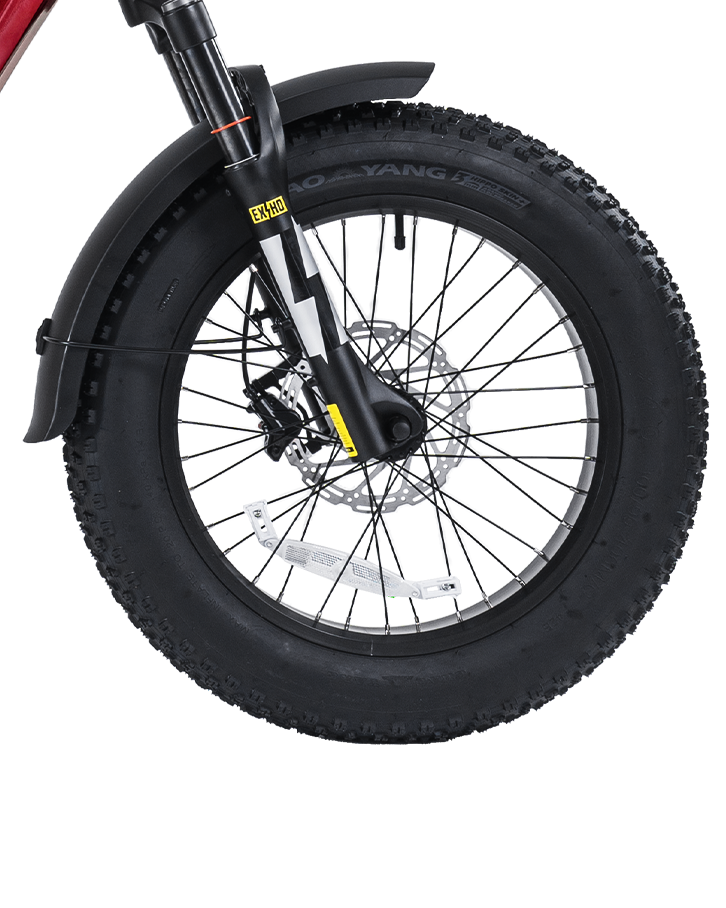

20"x4.0" Puncture-Resistant Tires
Crush any terrain with CHAOYANG 20"x4.0" fat tires. Reinforced with 3mm HIPPO SKIN+ puncture protection, these tires are built for maximum durability and relentless grip. Hard-hitting traction and rock-solid stability—engineered to be unstoppable on every road, in any condition.

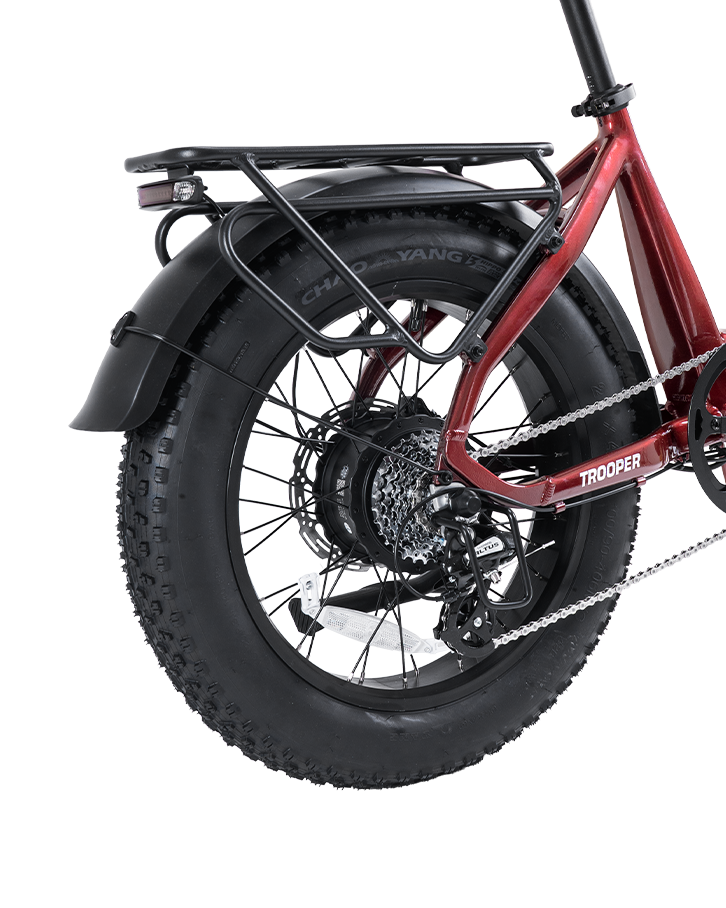

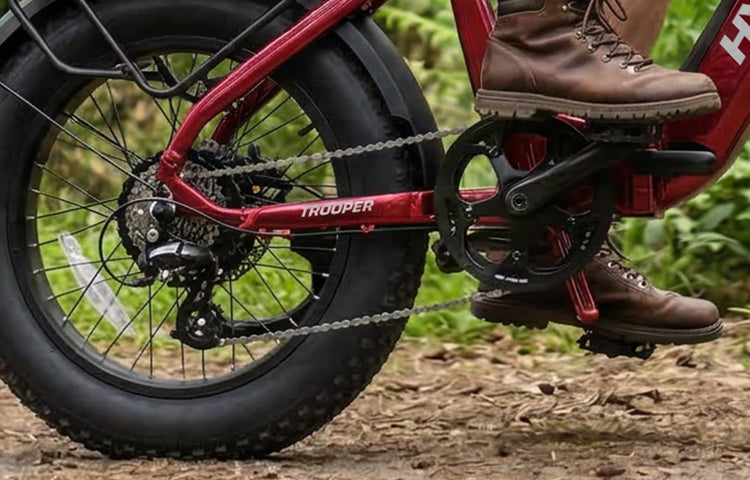

Shimano Altus 8-Speed
Experience professional-grade precision with the Shimano Altus derailleur, engineered for faster shifting and superior stability across any terrain. This reliable drivetrain ensures smooth, crisp gear changes under pressure, giving you the confidence to conquer steep climbs and rugged trails with ease. It’s the perfect blend of durable performance and effortless control for every adventure.

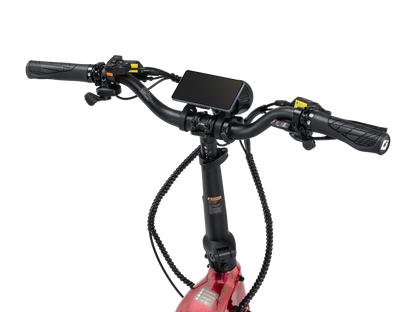

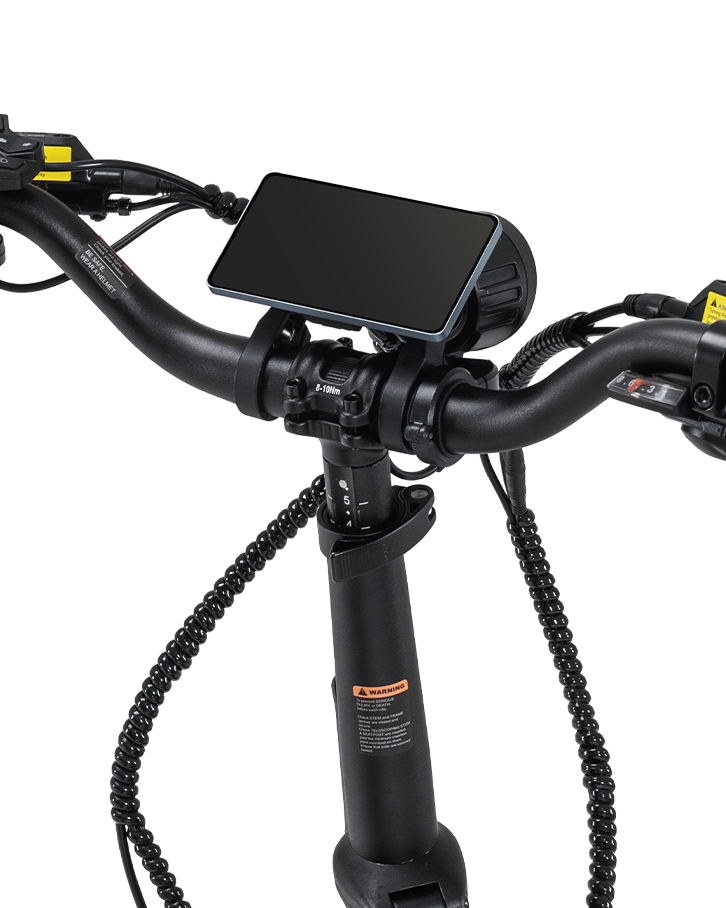

4.0" Full Color Display with High brightness
Stay in control with a massive 4.0" HD high-brightness screen. Engineered for clarity in direct sunlight, this waterproof display keeps your data sharp and readable even through heavy rain. Rugged and high-contrast, it’s built to handle the elements and keep your ride on track, rain or shine.

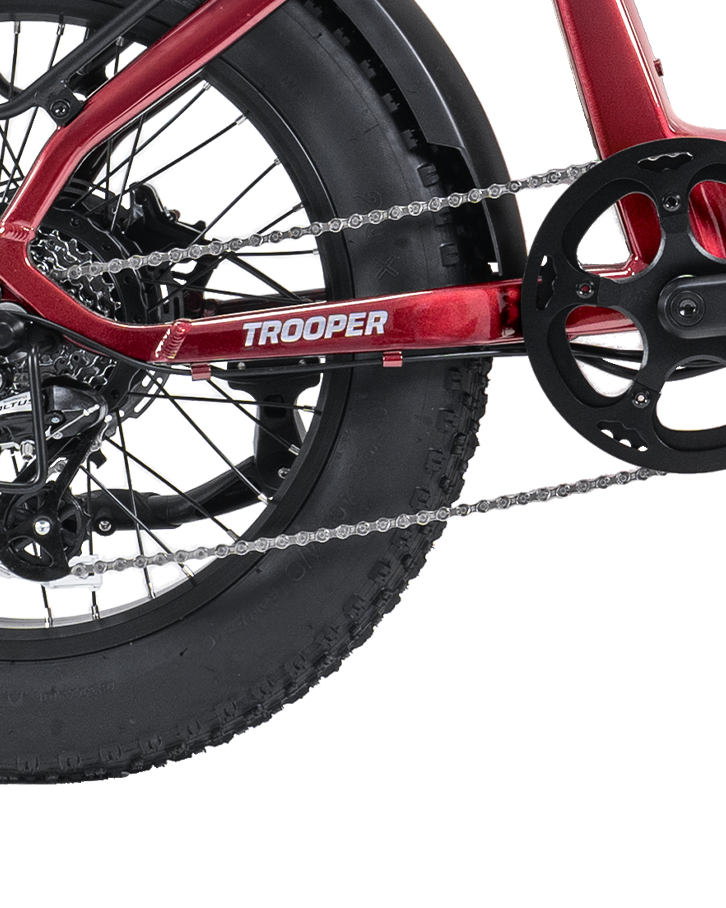

KMC Chain
Engineered for maximum durability and high-strength performance, this drivetrain delivers efficient power transfer and precise, dependable shifting. The chain features a corrosion-resistant coating that protects against rust and wear, helping it perform reliably in wet, dusty, or demanding conditions.
Comparison Models

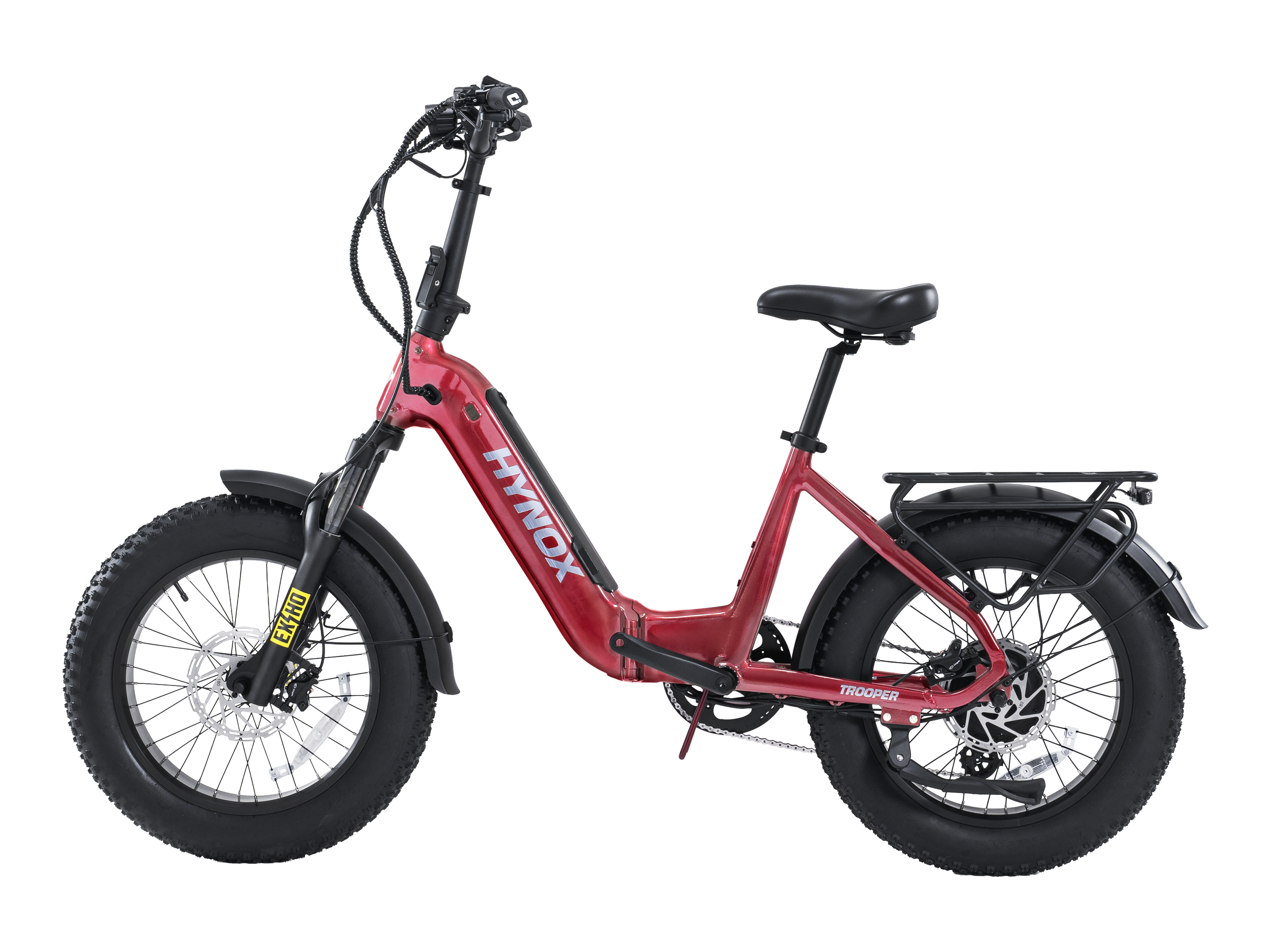

Ruby Red / One Size
Sale price$1,199.00Regular price
$1,299.00

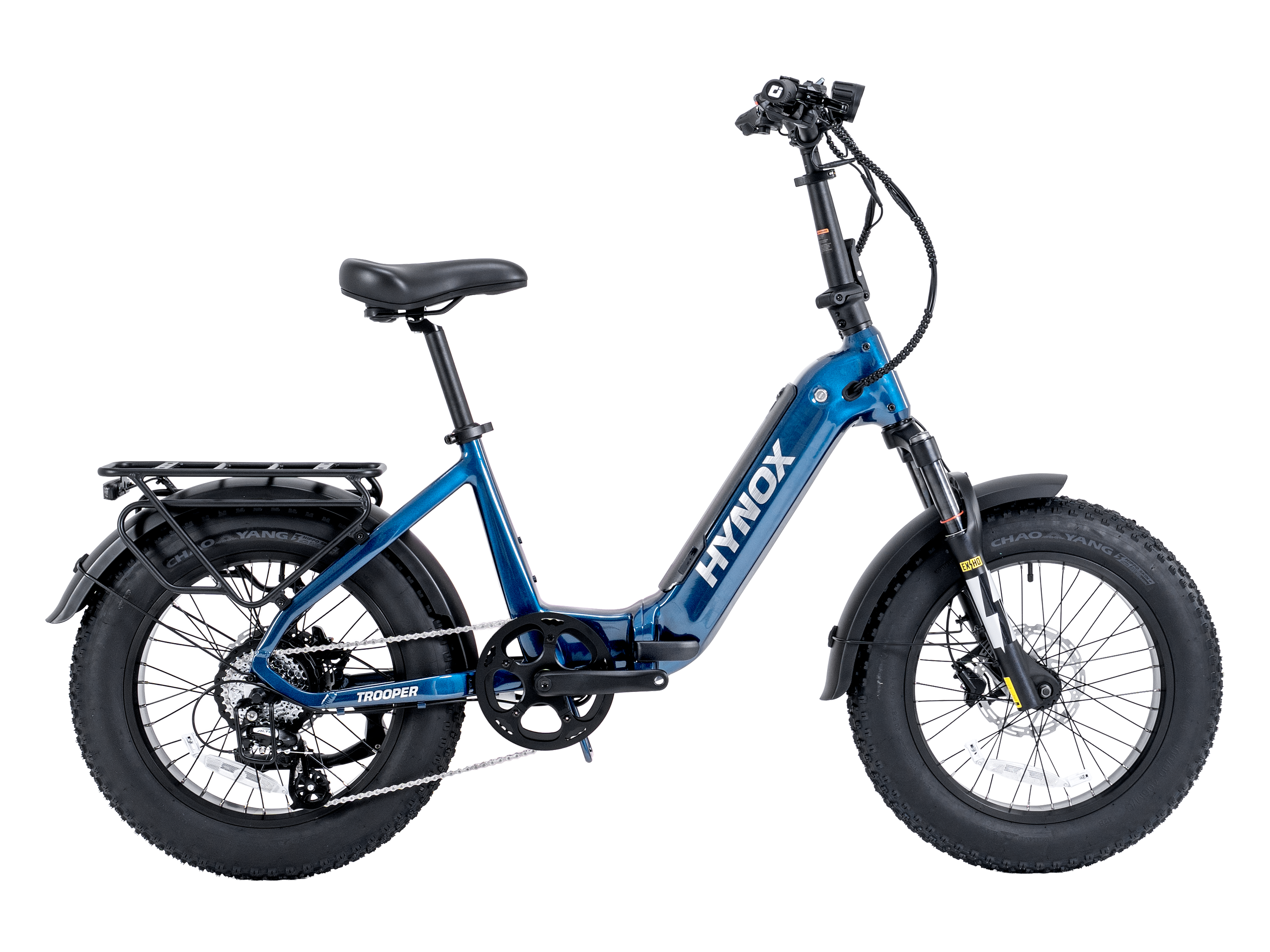

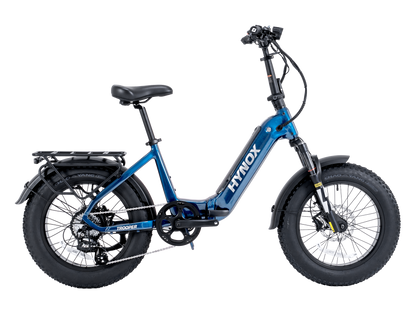

Sapphire Blue / One Size
Sale price$1,399.00Regular price
$1,499.00
Pearl White / One Size
Sale price$999.00Regular price
$1,099.00
Ruby Red / One Size
Sale price$1,199.00Regular price
$1,299.00
Sapphire Blue / One Size
Sale price$1,399.00Regular price
$1,499.00
Pearl White / One Size
Sale price$999.00Regular price
$1,099.00
Power
750W, Peak 1400W
750W, Peak 1600W
750W, Peak 1300W
Power
750W, Peak 1400W
750W, Peak 1600W
750W, Peak 1300W
Torque
85Nm
100Nm
75Nm
Torque
85Nm
100Nm
75Nm
Battery
48V, 15Ah, 720Wh, 21700 Cell
48V, 15Ah, 720Wh, 21700 Cell
48V, 13.5Ah 624Wh, 18650 Cell
Battery
48V, 15Ah, 720Wh, 21700 Cell
48V, 15Ah, 720Wh, 21700 Cell
48V, 13.5Ah 624Wh, 18650 Cell
Max Range
65 Miles
65 Miles
70 Miles
Max Range
65 Miles
65 Miles
70 Miles
Front Fork
80mm Hydraulic Suspension
80mm Hydraulic Suspension
60mm Hydraulic Suspension
Front Fork
80mm Hydraulic Suspension
80mm Hydraulic Suspension
60mm Hydraulic Suspension
Rear Suspension
No
DNM 35mm Air Suspension
No
Rear Suspension
No
DNM 35mm Air Suspension
No
App
App Connect
APP Connect
APP Connect
App
App Connect
APP Connect
APP Connect
Sensor
Torque Sensor
Torque Sensor
Torque Sensor
Sensor
Torque Sensor
Torque Sensor
Torque Sensor
Max Load
440 lbs
400 lbs
440 lbs
Max Load
440 lbs
400 lbs
440 lbs
Rear Rack Payload
66 lbs
66 lbs
120 lbs
Rear Rack Payload
66 lbs
66 lbs
120 lbs
Total Bike Weight
72 lbs
77 lbs
66 lbs
Total Bike Weight
72 lbs
77 lbs
66 lbs
Specification & Geometry
Size Guide
Bike Size：One Size
User Height Range：5'1" ~ 6'5''
Bike Folded: 41" x 22" x 29"
Frameset
Frame: 6061 Aluminum Alloy
Fork: EXSHO 80mm Travel Hydraulic Suspension with Lock-out
Electronics
Motor: 48V, 750W(Peak 1400W), 85Nm
Battery: Removable 48V 15Ah, 720Wh, IPX6
Cell: 21700 5000mAh Cell
Charger: 48V, 2.0A Fast Charger
Display: 4.0" Full color, High Brightness, Bluetooth, Adjustable Angle
Sensor: Torque Sensor
USB Port: USB Type-C Phone Charge
Throttle Assist: Trigger-Control, Removable
Pedal Assist: 5 PAS Levels
Walk Mode: 2.9 MPH
Headlight: 12V/6.5W 130Lux Integrated LED, High/Low Beam, Adjustable Angle
Taillight: Braking Highlight,Turn Signal
Speed & Range
Top Speed (Default): 20 MPH
Top Speed(Unlocked): 28 MPH
Class: 1/2/3
Throttle Range: 50 Miles
Pedal Assist Range: 65 Miles
(A 188 lbs rider using PAS 1 on flat roads.)
Drivetrain
Chainrings: 48T
Crankset: Aluminum Alloy, 170mm
Freewheel: 8-Speed, 11-32T
Chain: KMC 8-Speed
Rear Derailleur: SHIMANO Altus 8-Speed
Shift Lever: SHIMANO Altus 8-Speed
Brake
Brake: LOGAN Hydraulic Disc Brakes
Rotors: 180mm Diameter, 2.3mm Thickness (F/R)
Brake Levers: Aluminum Alloy, with Power Cutoff
Calipers: Dual-piston brake calipers
Wheel
Rims: Aluminum Alloy
Front Hub: Aluminum Alloy, Nutted
Tire: 20x4.0" CHAOYANG eBike Puncture Resistant Tires
Cockpit
Handlebar: Aluminum Alloy, Φ31.8mm, 660mm
Grips: ODI Ergonomic Lock-On Grips
Saddle: 8.6" Wide Ergonomic Saddle with High-density Memory Foam.
Seatpost: Aluminum Alloy, Φ30.9mm, 370mm
Clamp: Aluminum Alloy, Quick Release
Supports
Fenders: Plastic, Front and Rear Full Coverage
Rear Rack: Aluminum Alloy
Pedals: Plastic, Foldable
Kickstand: Aluminum Alloy, included, Rear Mount
Weight & Load
Bike Weight: 72 lbs
Max Bike Load: 440 lbs
Rear Rack Load: 66 lbs
Geometry
- A - Seat Tube Length : 400mm
- B - Effective Top Tube (ETT): 649.1mm
- C - Reach: 476.4mm
- D - Stack: 530mm
- E - Head Tube Length: 150mm
- F - Rear Center(horizontal ): 425mm
- G - Front Center(horizontal ): 742mm
- H - Wheelbase: 1167mm
- I - Headtube Angle: 68°
- J - Seat Tube Angle: 72°
- K - Fork Length: 450mm
- L - Fork Rake/Offset: 44mm
- M - Trail: 66mm
- N - Stand Over Height: 420mm
- O - Bottom Bracket Height/Drop: +10mm(Rise)
- P - Min Saddle Height: 815mm
In The Box
FAQs
How powerful is the Trooper on steep hills?
The Trooper is a hill-climbing beast. With 85Nm of raw torque and a 750W (1400W Peak) motor, it delivers high-climbing power that crushes steep inclines where standard ebikes struggle.
What is the range on a single charge?
You can expect up to 65 miles of range (using PAS 1). This allows you to go further and stay out longer on your off-road adventures.
Can the Trooper handle sand, mud, or snow?
Absolutely. The 20" x 4.0" Fat Tires provide relentless grip across all surfaces. We’ve engineered these with a Puncture-Resistant Liner to ensure your ride isn't interrupted by thorns or glass on the trail. Whether you're navigating deep sand, soft mud, or city potholes, the wider footprint and reinforced protection ensure total stability and confidence in any environment.
What makes the Trooper's battery "hardcore"?
The Trooper is powered by a high-performance 48V 15Ah (720Wh) Removable Battery utilizing premium 21700 5000mAh Cells. Compared to standard 18650 cells, the 21700 offers higher energy density and superior thermal stability, ensuring long-lasting power and a longer lifespan for the battery pack.
What makes the Trooper’s braking system different?
Safety is our priority. We use Logan Hydraulic Disc Brakes with heavy-duty 180mm x 2.3mm thick rotors. This setup provides superior heat dissipation and consistent, fade-free stopping power even under a 440 lbs maximum load.
Is the Trooper water-resistant?
Yes, the Trooper is built to handle real-world conditions. All electrical components are IPX6-rated to withstand rain and splashes, though we do not recommend pressure washing or submerging the bike.
What is the difference between the Trooper and the Trooper X
Core Similarities:
- Technology: Both feature a Torque Sensor and IPX6 Water-Resistant rating for the entire bike.
- Battery: Both use premium 21700-cell 48V 15Ah removable batteries.
- Build: Both include 20" x 4.0" Fat Tires, Hydraulic Disc Brakes, and an 80mm Hydraulic Lock-out Front Fork.
Key Differences:
- Raw Power: The Trooper delivers 85Nm torque (1400W Peak), while the Trooper X kicks it up to a massive 100Nm torque (1600W Peak) for extreme climbing.
- Suspension: The Trooper uses a front-only suspension. The Trooper X features Full Suspension Unleashed, adding a professional DNM Air Shock with 35mm of travel at the rear for superior trail control.
How fast is shipping and is it free?
We provide Free Shipping to the lower 48 states. Orders are typically processed within 48 hours, and most riders receive their Trooper within 3-5 business days.
What is the warranty coverage for the Trooper?
We stand behind the "Hardcore" build of the Trooper with a 2-Year Warranty. We also offer lifetime technical support to keep your Trooper running at peak performance.
What is your return policy?
We offer a 30-Day Trial. If the Trooper isn't the right fit for your adventures, you can return it within 30 days. Please check our full Return Policy page for details.
