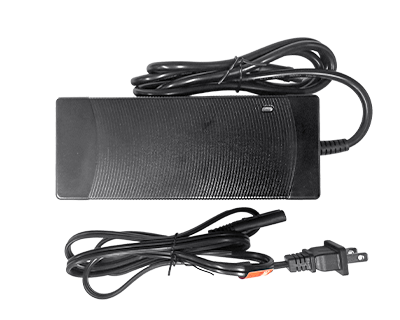

Charger

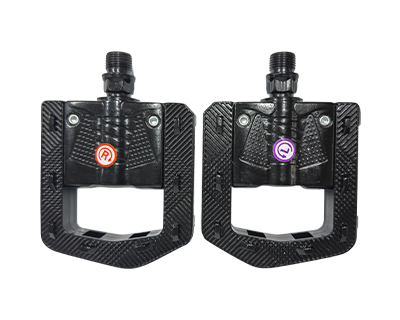

Pedals

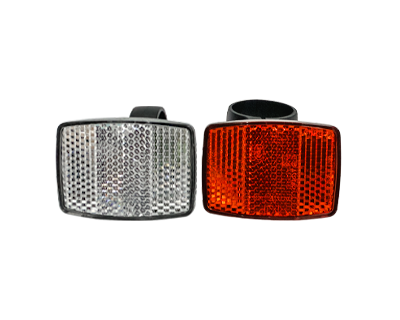

Front & Rear Reflectors

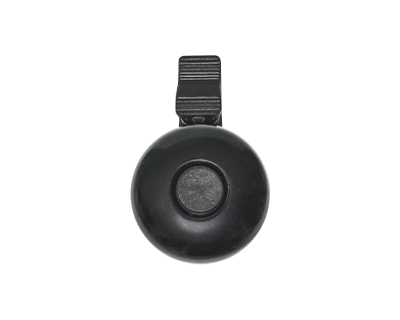

Bell

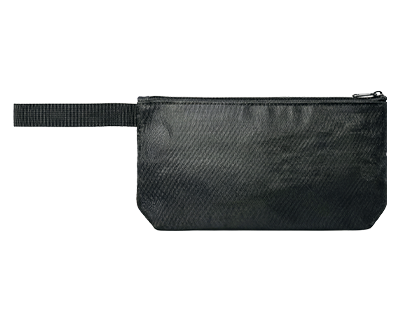

Tool kits
Save $100
750W/100Nm
Motor Power
28 MPH
Top Speed
65 Miles
Max Range
400 lbs
Max Playload
20"x4.0"
Tire Size
Torque Sensor
Sensor
750W/100Nm
Motor Power
28 MPH
Top Speed
65 Miles
Max Range
400 lbs
Max Playload
20"x4.0"
Tire Size
Torque Sensor
Sensor

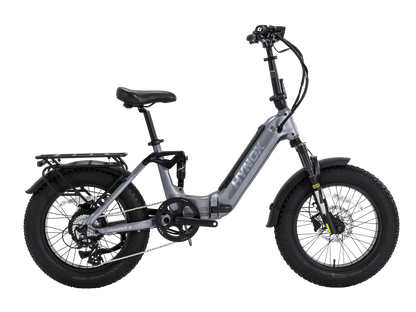

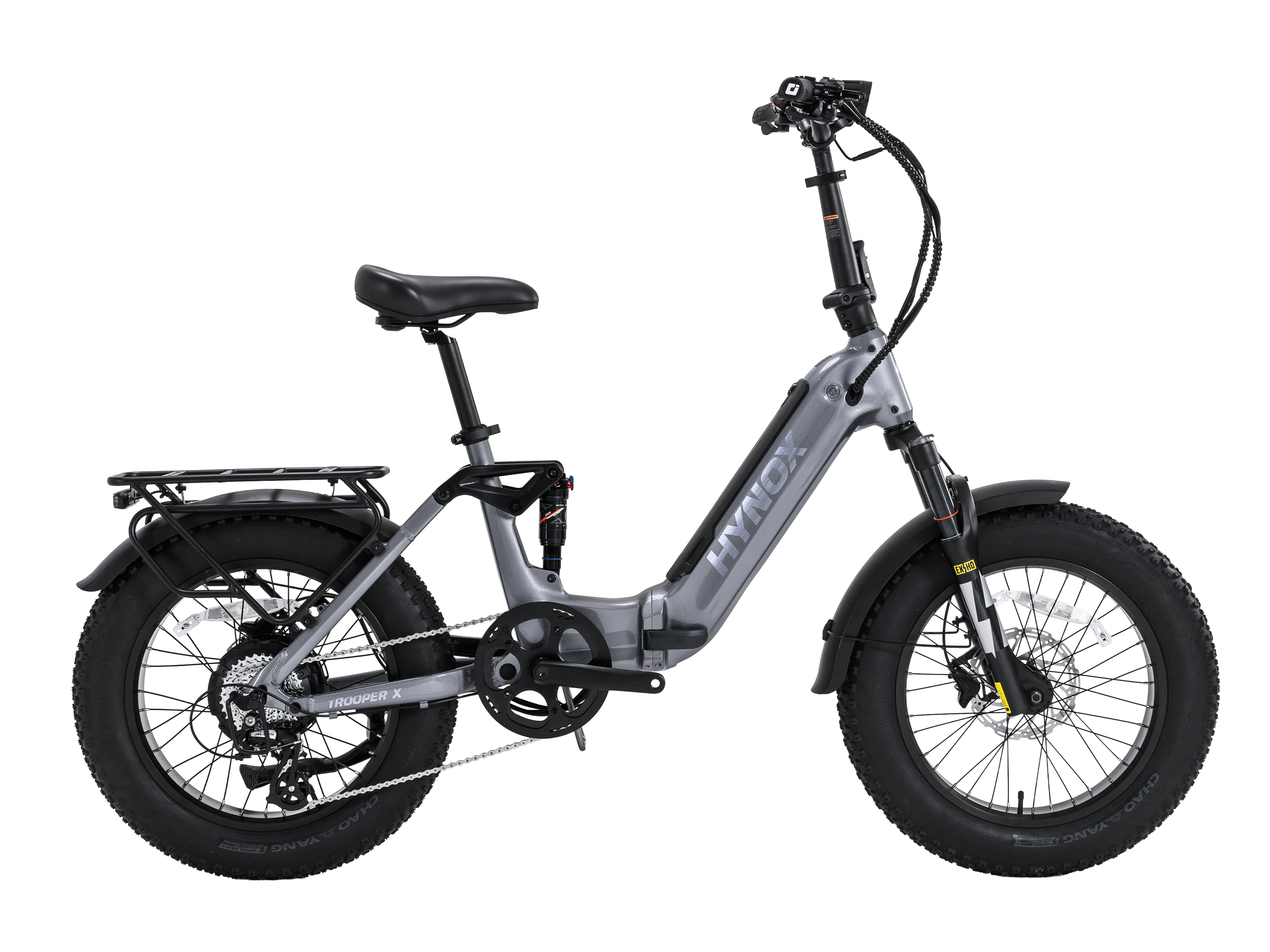

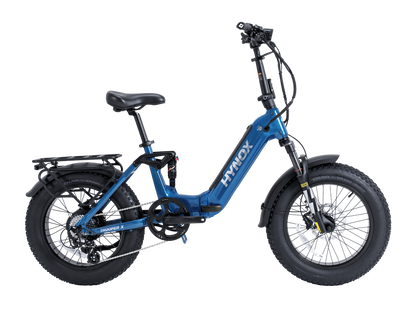

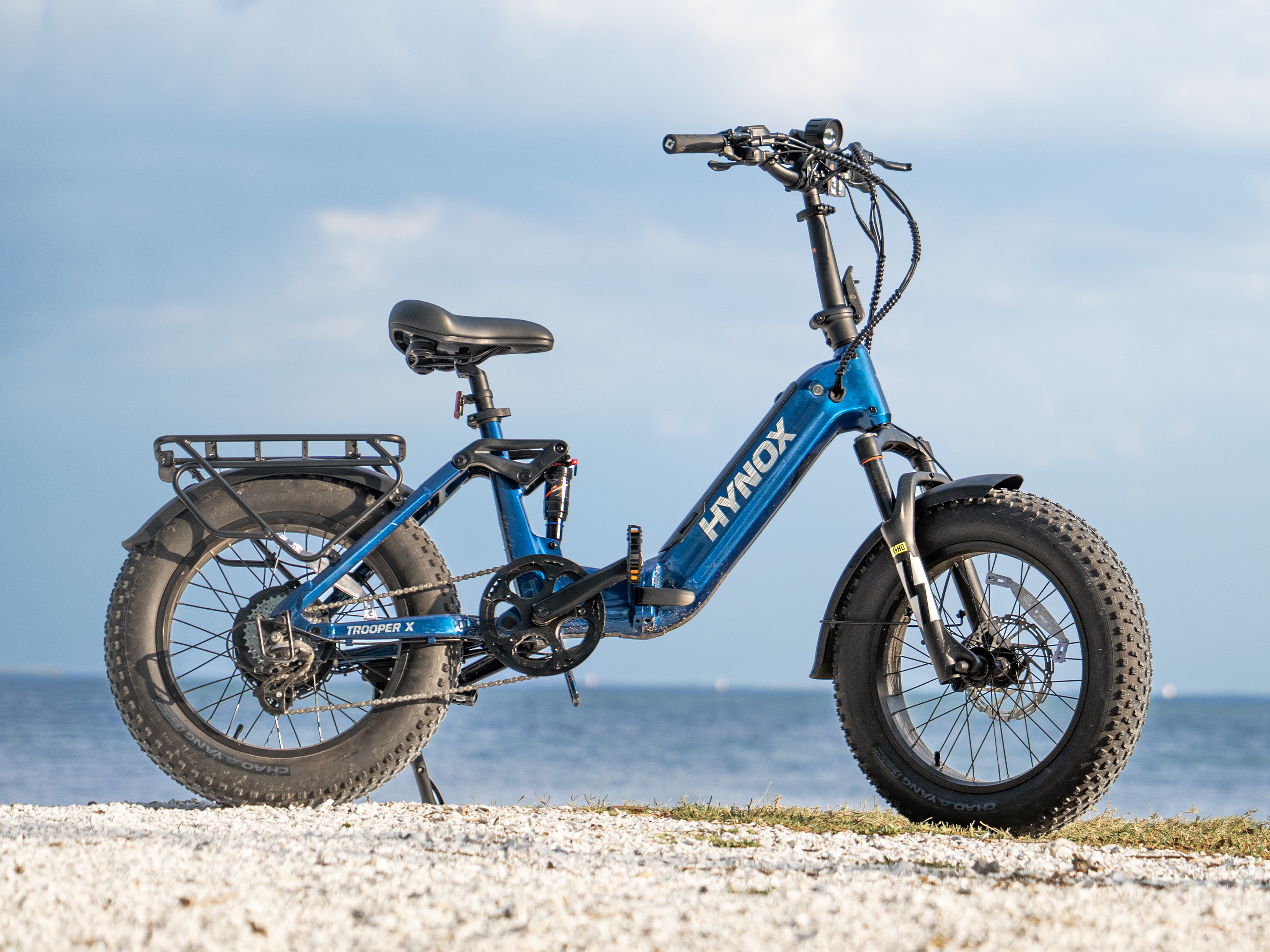

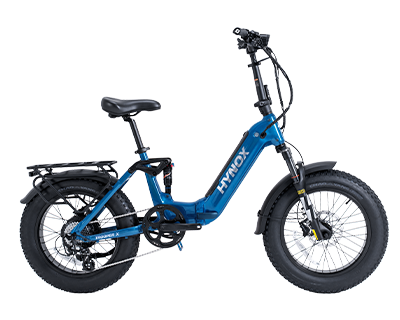

TROOPER X
Unfold the Power. Full Suspension Unleashed.
Sale price$1,399.00Regular price
$1,499.00
US Stock, Order Today, Receive Before April 19, 2026
Pair Well With
750W/100Nm
Motor Power
28 MPH
Top Speed
65 Miles
Max Range
400 lbs
Max Playload
20"x4.0"
Tire Size
Torque Sensor
Sensor
30-Day Trial
2-Year Warranty
Free Shipping to the Lower 48
Ship from USA.

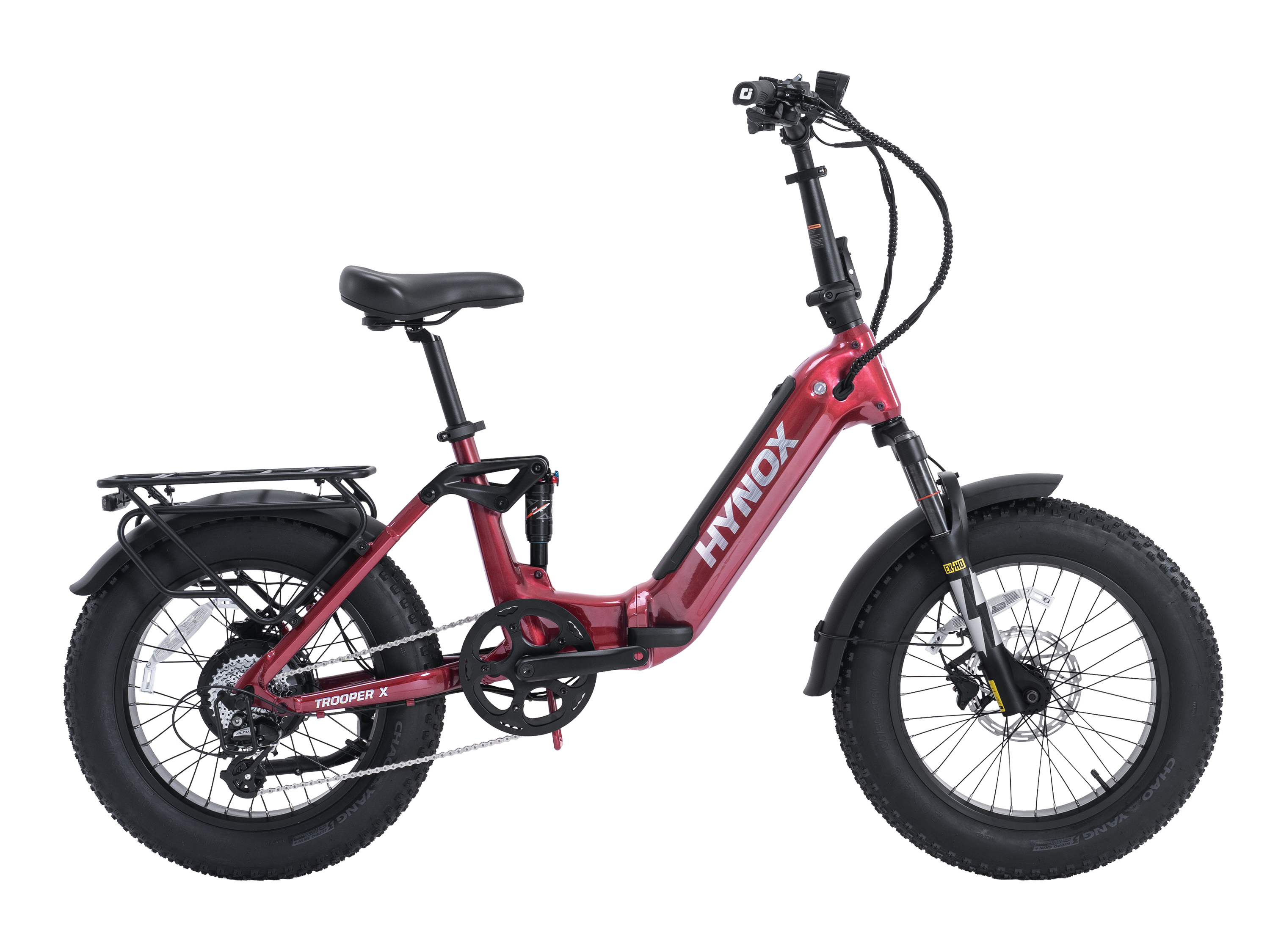

TROOPER X
Sapphire Blue / One Size
Sale price$1,399.00Regular price
$1,499.00
TROOPER X: UNLEASH THE BEAST

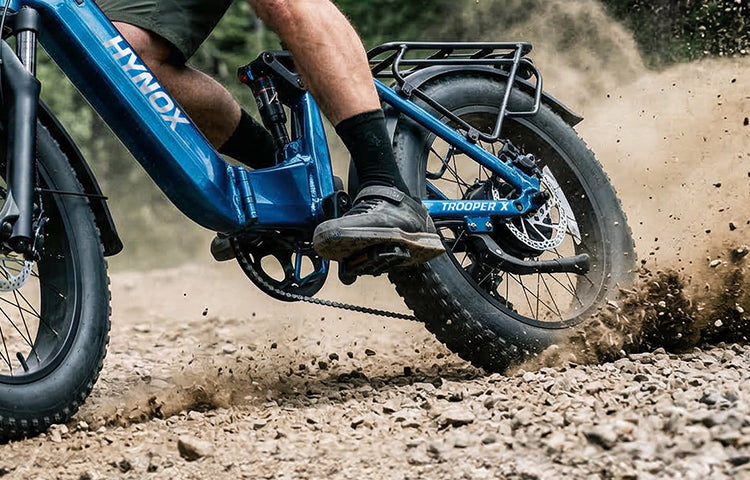

This is no toy—this is a beast. Driven by a true 100Nm of raw torque and Hynox’s custom-tuned electronics, one touch of the throttle sends your adrenaline skyrocketing. This is a violent, unpredictable power that demands absolute mastery. Tame the monster, or stay off.
Engineered for All-Terrain Mastery
The Trooper X frame integrates a four-bar Horst-link rear suspension with refined geometry, engineered to conquer diverse terrain with confidence. A relaxed 69° head tube angle and long 1178mm wheelbase provide outstanding stability, while the optimized 66mm trail enhances agility and traction across 20"×4.0" fat tires. A low 430mm step-thru design ensures a comfortable, upright riding posture with minimal strain.
Superior Braking Power
Equipped with LOGAN hydraulic disc brakes and heavy-duty 180mm x 2.3mm rotors, this system is built for ultimate control. The dual-piston calipers combined with extra-thick rotors provide exceptional heat dissipation and durability, ensuring silent, fade-free, and reliable stopping power on even the steepest all-terrain descents.

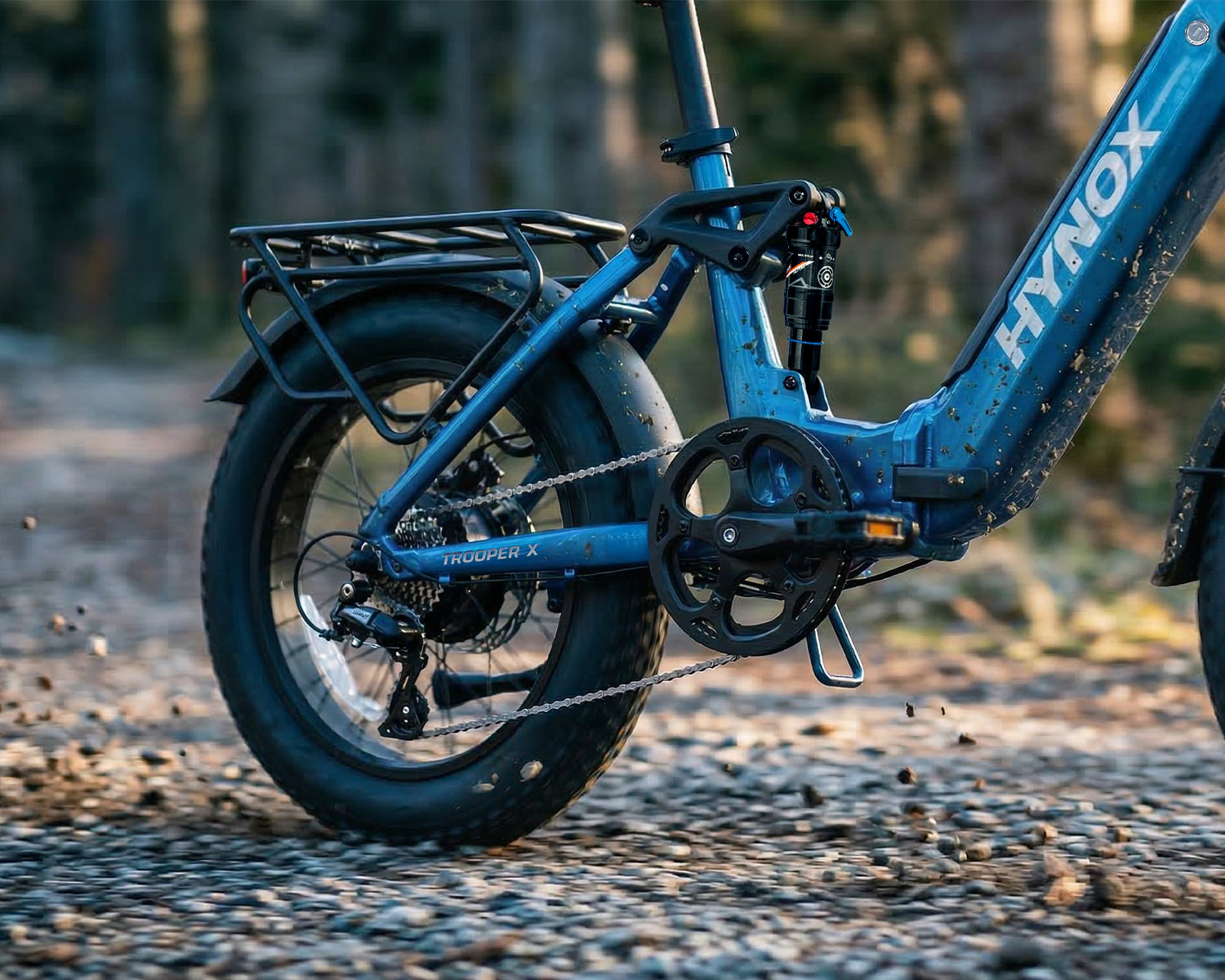

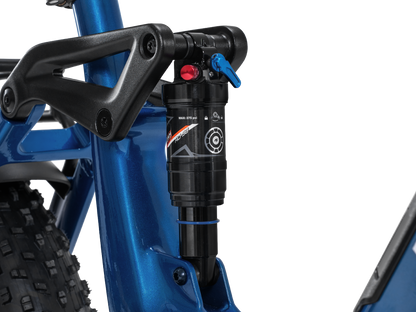

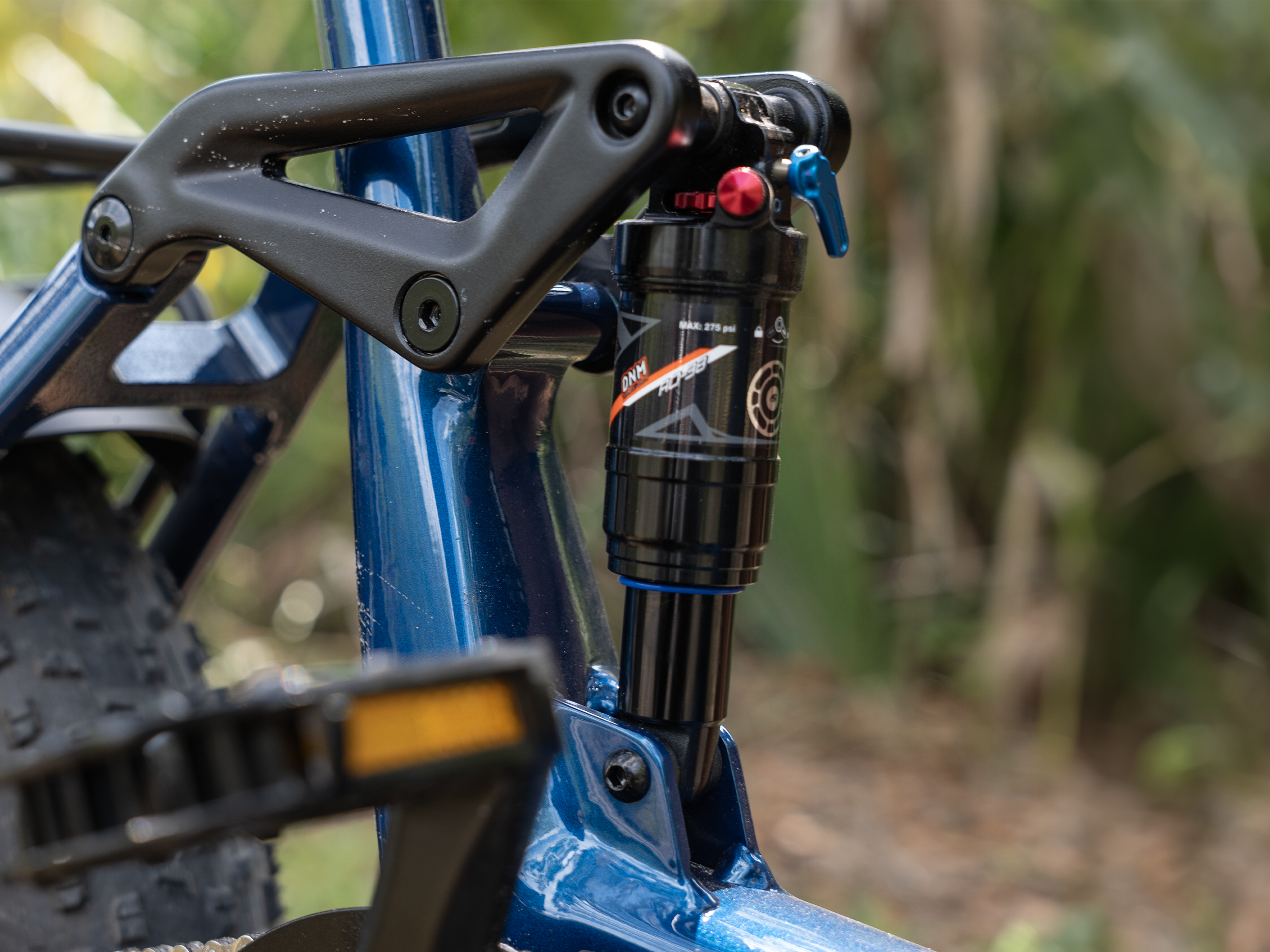

DNM AO-38RC Air Shock: Pro-Grade Control
Experience elite control with the DNM 35mm air shock, integrated into a Horst-Link structure for 80mm of rear wheel travel. This 3-way adjustable setup lets you fine-tune rebound damping, use the lockout lever for efficiency, and customize air preload to your style. Together with the EXSHO 80mm front fork, it creates a high-performance Full Suspension System built for a plush and responsive ride.

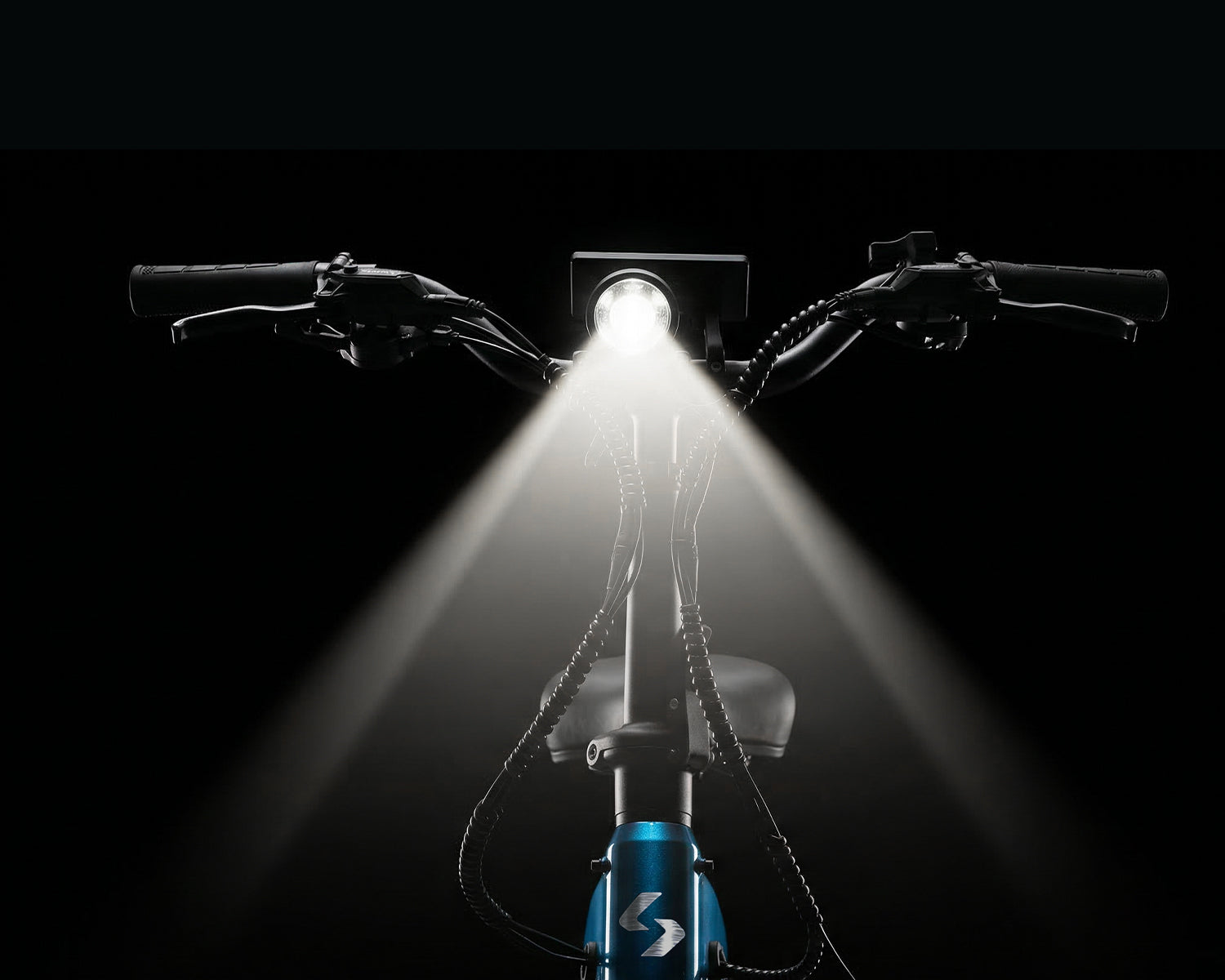

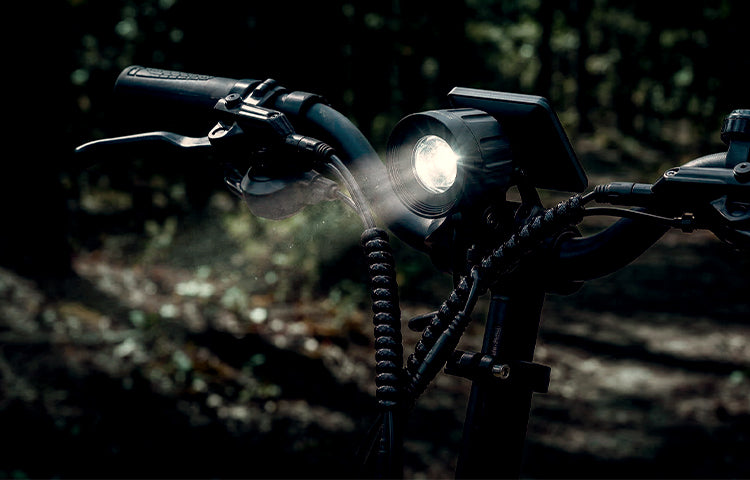

130 Lux Headlight with High/Low Beam
Your path, perfectly lit. Instantly switch between a focused, glare-free low beam for city riding and a powerful high beam for extended visibility at the touch of a button. Complemented by a high-brightness taillight with integrated turn signals, it ensures you can see further while remaining clearly visible to others in any environment.
EXSHO 80mm Hydraulic Suspension
Crush both city streets and brutal off-road trails with the EXSHO 80mm hydraulic suspension. Engineered for high-impact shock absorption, it delivers rock-solid stability on any surface. From jagged potholes to rugged dirt tracks, this heavy-duty system provides the ultimate balance of comfort and control. Built to endure, built to perform—no matter where the road ends.

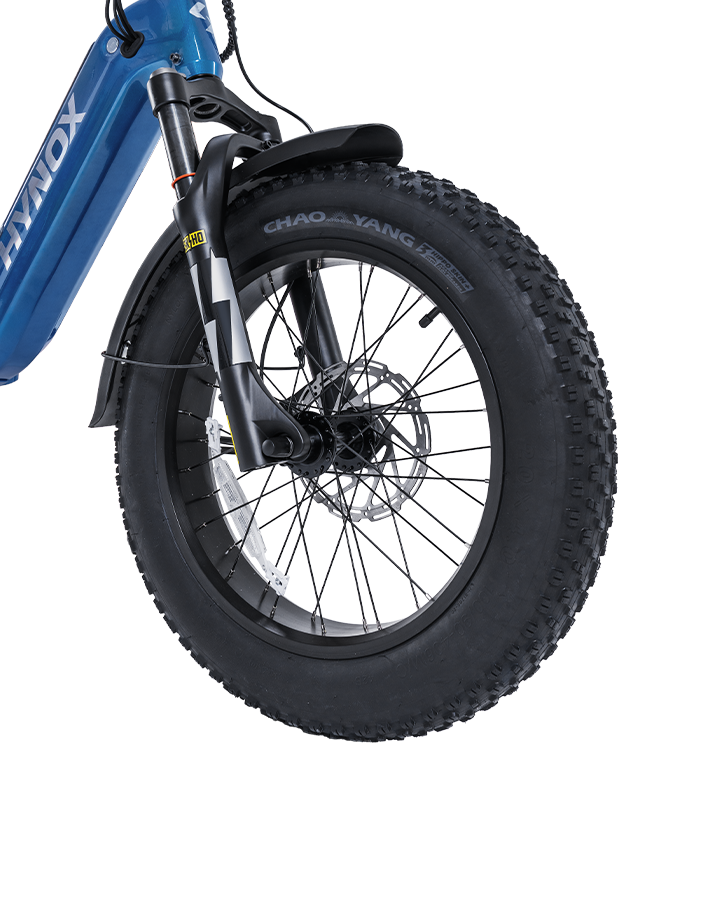

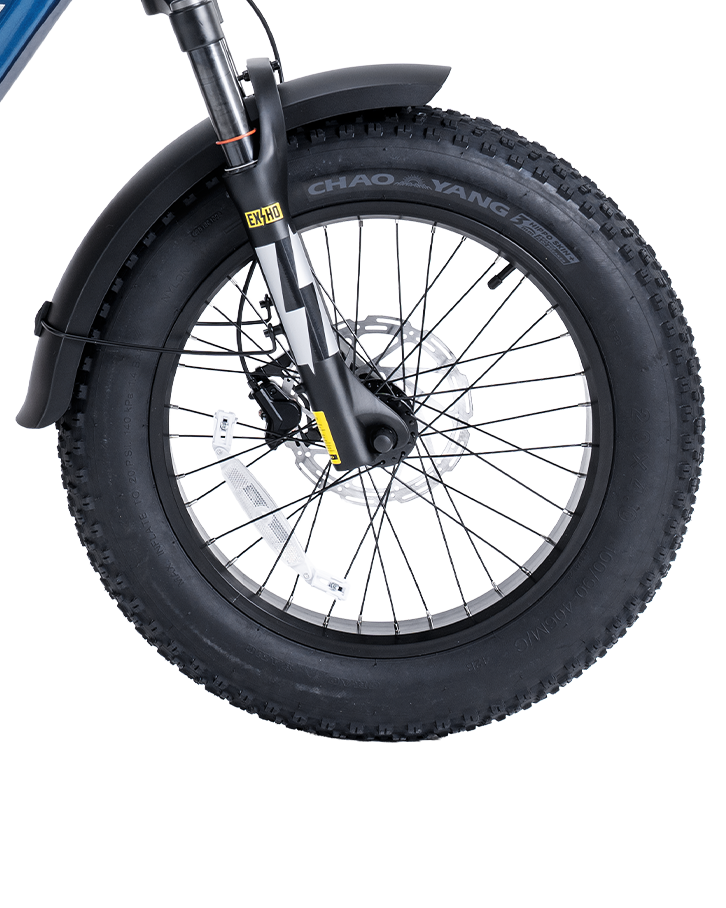

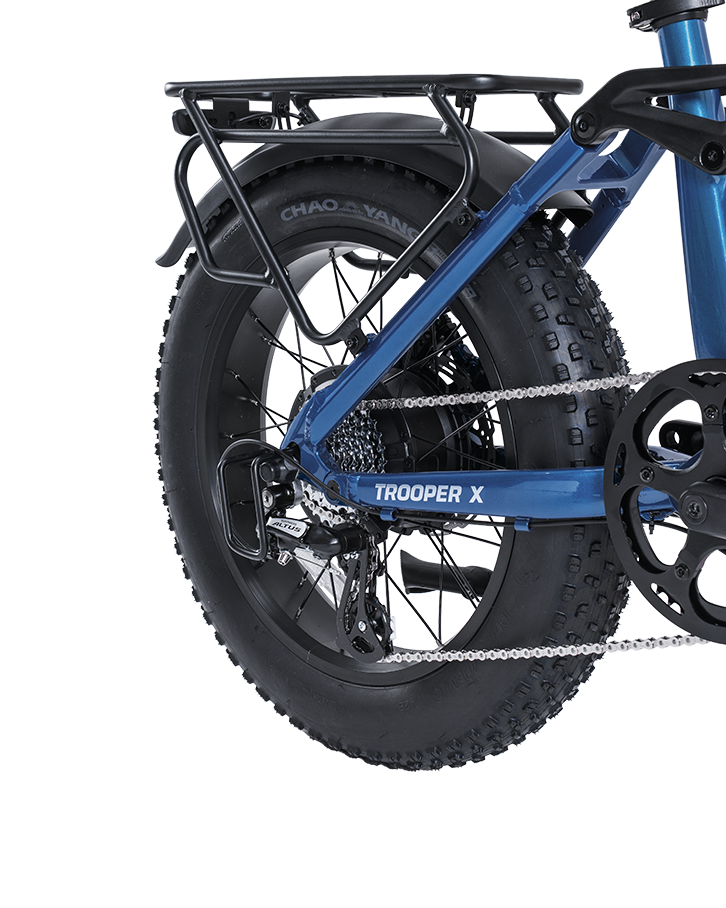

20"x4.0" Puncture-Resistant Tires
Crush any terrain with CHAOYANG 20"x4.0" fat tires. Reinforced with 3mm HIPPO SKIN+ puncture protection, these tires are built for maximum durability and relentless grip. Hard-hitting traction and rock-solid stability—engineered to be unstoppable on every road, in any condition.

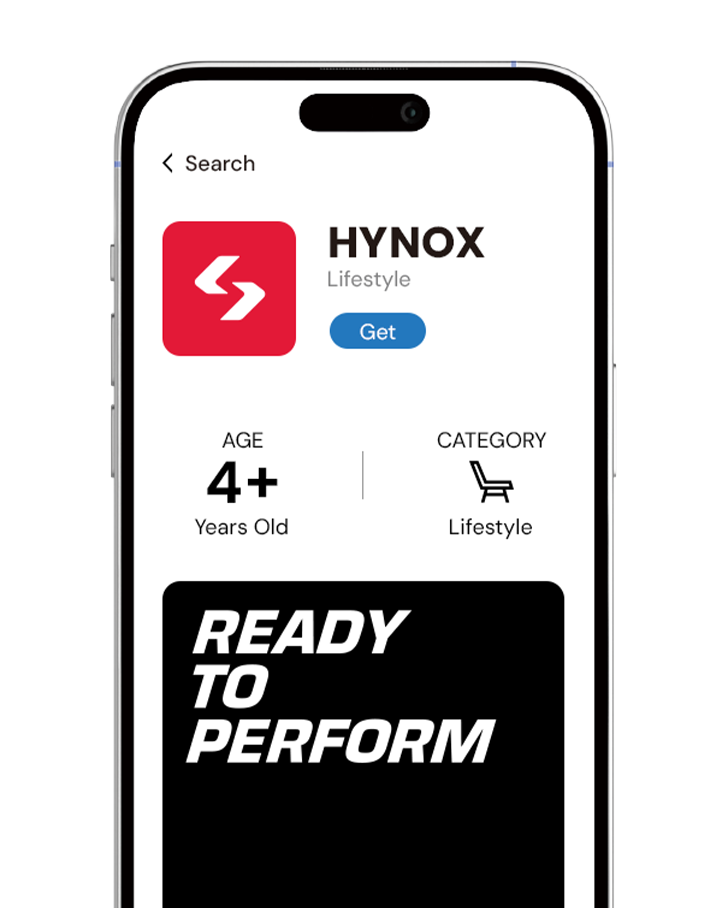

Hynox App
Connect your ride with theHYNOX Appfor total control via Bluetooth. Seamlessly power your bike on or off, toggle lights, and precision-tune your performance by setting custom speed limits for each PAS level and the throttle. With automatic ride tracking and OTA firmware updates, your bike stays smarter and more optimized with every sync.
Ergonomic Saddle
The 8.6" wide high-density memory foam saddle delivers an elite riding experience, blending firm support with ultimate comfort. Its expansive surface area is specifically engineered to alleviate pressure, ensuring a premium, pain-free journey even on the longest rides. Experience a seat that supports your posture and invites you to explore further in total relaxation.
Shimano Altus 8-Speed
Experience professional-grade precision with the Shimano Altus derailleur,engineered for faster shifting and superior stability across any terrain. This reliable drivetrain ensures smooth, crisp gear changes under pressure, giving you the confidence to conquer steep climbs and rugged trails with ease. It’s the perfect blend of durable performance and effortless control for every adventure.

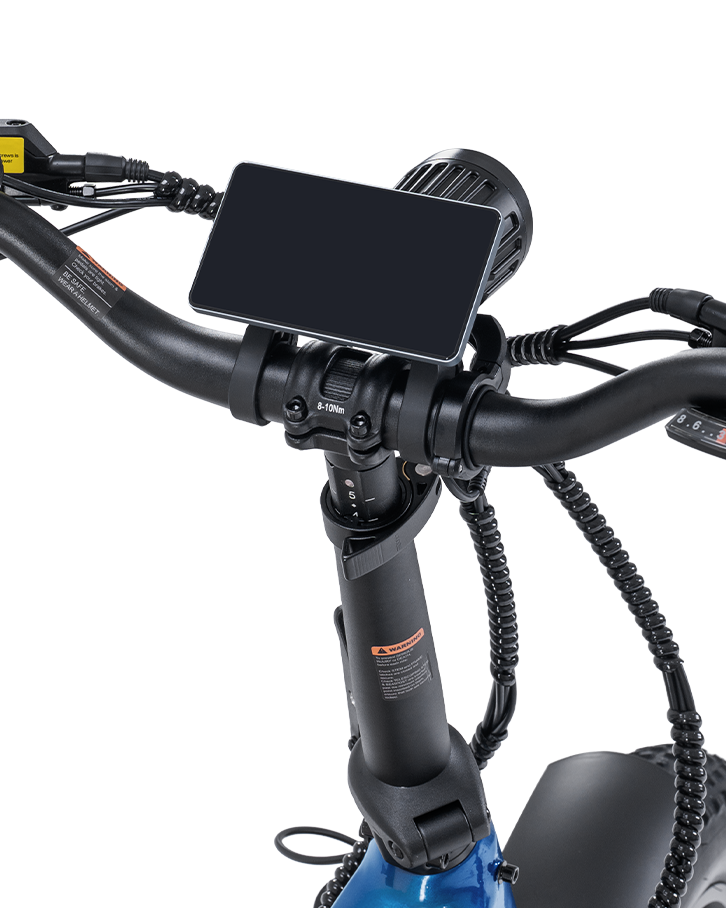

4.0" Full Color Display with High brightness
Stay in control with a massive 4.0" HD high-brightness screen. Engineered for clarity in direct sunlight, this waterproof display keeps your data sharp and readable even through heavy rain. Rugged and high-contrast, it’s built to handle the elements and keep your ride on track, rain or shine.

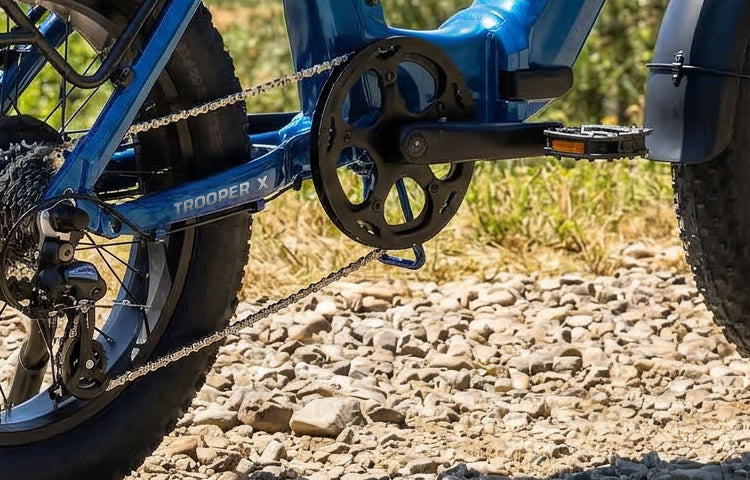

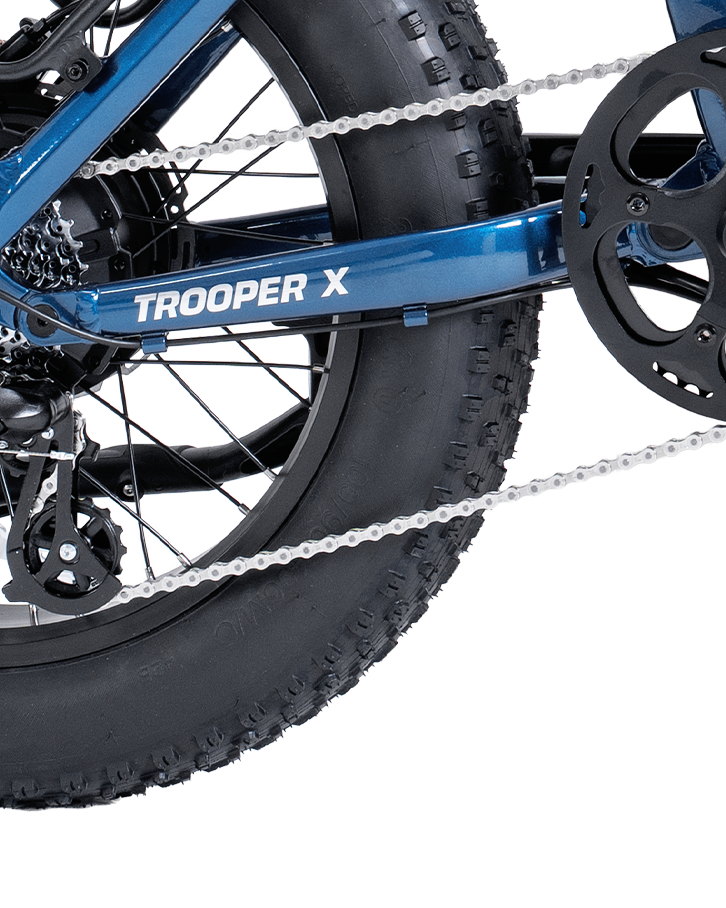

KMC Chain
Engineered for maximum durability and high-strength performance, this drivetrain delivers efficient power transfer and precise, dependable shifting. The chain features a corrosion-resistant coating that protects against rust and wear, helping it perform reliably in wet, dusty, or demanding conditions.

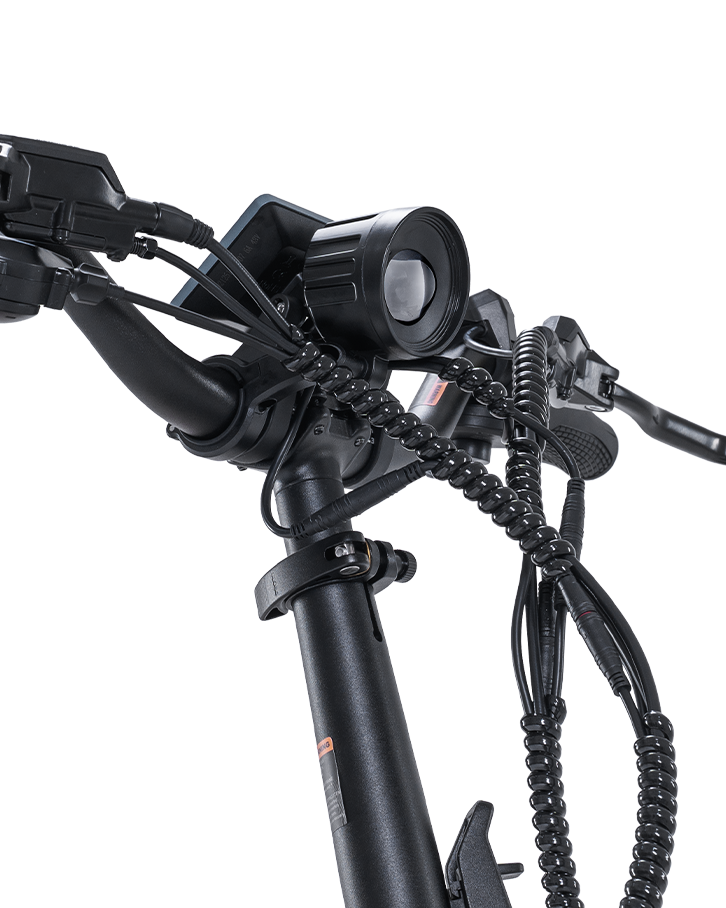

130 Lux. High/Low Beam Front Light
Dominate the road with a powerful 130 Lux dual-beam system. Featuring a dedicated High/Low Beam switch, you can instantly toggle between a wide-angle low beam for urban safety and a high-penetration long beam for dark stretches. Hard-hitting brightness and precision control, built to ensure you see everything and stay visible in any environment.
Comparison Models
Sapphire Blue / One Size
Sale price$1,399.00Regular price
$1,499.00

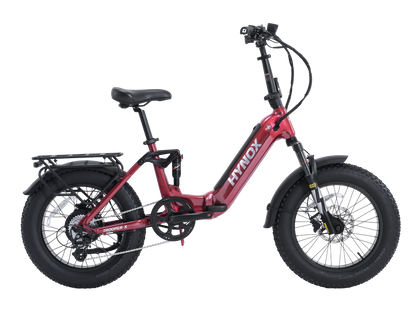

Ruby Red / One Size
Sale price$1,199.00Regular price
$1,299.00
Pearl White / One Size
Sale price$999.00Regular price
$1,099.00
Sapphire Blue / One Size
Sale price$1,399.00Regular price
$1,499.00
Ruby Red / One Size
Sale price$1,199.00Regular price
$1,299.00
Pearl White / One Size
Sale price$999.00Regular price
$1,099.00
Power
750W, Peak 1600W
750W, Peak 1400W
750W, Peak 1300W
Power
750W, Peak 1600W
750W, Peak 1400W
750W, Peak 1300W
Torque
100Nm
85Nm
75Nm
Torque
100Nm
85Nm
75Nm
Battery
48V, 15Ah, 720Wh, 21700 Cell
48V, 15Ah, 720Wh, 21700 Cell
48V, 13Ah 624Wh, 18650 Cell
Battery
48V, 15Ah, 720Wh, 21700 Cell
48V, 15Ah, 720Wh, 21700 Cell
48V, 13Ah 624Wh, 18650 Cell
Max Range
65 Miles
65 Miles
70 Miles
Max Range
65 Miles
65 Miles
70 Miles
Front Fork
80mm Hydraulic Suspension
80mm Hydraulic Suspension
60mm Coil Suspension
Front Fork
80mm Hydraulic Suspension
80mm Hydraulic Suspension
60mm Coil Suspension
Rear Suspension
DNM 35mm Air Suspension
No
No
Rear Suspension
DNM 35mm Air Suspension
No
No
App
APP Connect
App Connect
APP Connect
App
APP Connect
App Connect
APP Connect
Sensor
Torque Sensor
Torque Sensor
Torque Sensor
Sensor
Torque Sensor
Torque Sensor
Torque Sensor
Max Load
400 lbs
440 lbs
440 lbs
Max Load
400 lbs
440 lbs
440 lbs
Rear Rack Payload
66 lbs
66 lbs
120 lbs
Rear Rack Payload
66 lbs
66 lbs
120 lbs
Total Bike Weight
77 lbs
72 lbs
66 lbs
Total Bike Weight
77 lbs
72 lbs
66 lbs
Specification & Geometry
Size Guide
Bike Size：One Size
User Height Range：5'1" ~ 6'5''

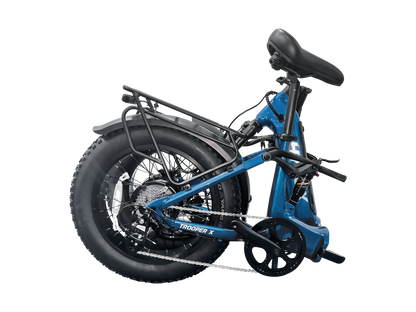

Bike Folded: 41" x 22" x 29"
Frameset
Frame: 6061 Aluminum Alloy
Fork: EXSHO 80mm Travel Hydraulic Suspension with Lock-out
Rear: DNM 165 x 35 mm AO-38RC 3-Way Air Shock
Electronics
Motor Hub: 48V, 750W(Peak 1600W), 100Nm

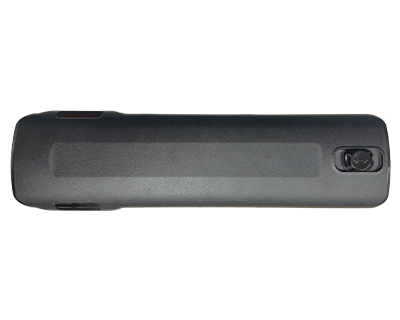

Battery: Removable 48V, 15Ah, 720Wh, IPX6
Cell: 21700 5000mAh Cell
Charger: 48V, 3.0A Fast Charger
Display: 4.0" Full Color, High Brightness, Bluetooth, Adjustable Angle
Sensor: Torque Sensor
USB Port: USB Type-C Phone Charge
Throttle Assist: Trigger-Control, Removable
Pedal Assist: 5 PAS Levels
Walk Mode: 2.9 MPH
Headlight: 12V/6.5W 130Lux Integrated LED, High/Low Beam, Adjustable Angle
Taillight:Braking Highlight,Turn Signal
Speed & Range
Top Speed (Default): 20 MPH
Top Speed(Unlocked): 28 MPH
Class: 1/2/3
Throttle Range: 50 Miles
Pedal Assist Range: 65 Miles
(A 188 lbs rider using PAS 1 on flat roads.)
Drivetrain
Chainrings: 48T
Crankset: Aluminum Alloy, 170mm
Freewheel: 8-Speed, 11-32T
Chain: KMC 8-Speed
Rear Derailleur: SHIMANO Altus 8-Speed
Shift Lever: SHIMANO Altus 8-Speed
Brake
Brake: LOGAN Hydraulic Disc Brakes
Rotors: 180mm Diameter, 2.3mm Thickness (F/R)
Brake Levers: Aluminum Alloy, with Power Cutoff
Calipers: Dual-piston brake calipers
Wheel
Rims: Aluminum Alloy
Front Hub: Aluminum Alloy, Nutted
Tire: 20x4.0" CHAOYANG eBike Puncture Resistant Tires
Cockpit
Handlebar: Aluminum Alloy, Φ31.8mm, 660mm
Grips: ODI Ergonomic Lock-On Grips
Saddle: 8.6" Wide Ergonomic Saddle with High-density Memory Foam.
Seatpost: Aluminum Alloy, Φ30.9mm, 370mm
Clamp: Aluminum Alloy, Quick Release
Supports
Fenders: Plastic, Front and Rear Full Coverage
Rear Rack: Aluminum Alloy
Pedals: Plastic, Foldable
Kickstand: Aluminum Alloy, Included, Rear Mount
Weight & Load
Bike Weight: 77 lbs
Max Bike Load: 400 lbs
Rear Rack Load: 66 lbs
Geometry
- A - Seat Tube Length : 400mm
- B - Effective Top Tube (ETT): 649.4mm
- C - Reach: 493.2mm
- D - Stack: 510mm
- E - Head Tube Length: 150mm
- F - Rear Center(horizontal ): 430mm
- G - Front Center(horizontal ): 749mm
- H - Wheelbase: 1179mm
- I - Headtube Angle(Actual): 69°
- J - Seat Tube Angle(Actual)) : 73°
- K - Fork Length: 450mm
- L - Fork Rake/Offset: 44mm
- M - Trail: 64mm
- N - Stand Over Height: 435mm
- O - Bottom Bracket Height/Drop: +35mm (Rise)
- P - Min Saddle Height: 820mm
In The Box
FAQs
How powerful is the Trooper X
The Trooper X is our most powerful machine yet. With a massive 100Nm of raw torque and a 750W (1600W Peak) high-output motor, it delivers unstoppable climbing power that effortlessly conquers the steepest, most technical inclines.
What is the advantage of the Full Suspension System?
The Trooper X features a Full Suspension Unleashed setup for the ultimate off-road experience. Up front, it sports an EXSHO 80mm Hydraulic Fork (with Lock-out). At the rear, it is equipped with a professional-grade DNM Air Shock with 35mm of travel. This combination allows you to fine-tune your rebound and soak up heavy hits and trail chatter for maximum control on rugged terrain.
What makes the Trooper X's battery "hardcore"?
The Trooper X is powered by a high-performance 48V 15Ah (720Wh) Removable Battery utilizing premium 21700 5000mAh Cells. Compared to standard cells, the 21700 offers higher energy density and superior thermal stability, ensuring a 65-mile range and a longer lifespan.
Can Trooper X handle sand, mud, or snow?
Absolutely. The 20" x 4.0" Fat Tires provide relentless grip across all surfaces. We’ve engineered these with a Puncture-Resistant Liner to ensure your ride isn't interrupted by thorns or glass on the trail. Whether you're navigating deep sand, soft mud, or city potholes, the wider footprint and reinforced protection ensure total stability and confidence in any environment.
Is the Trooper X water-resistant?
Yes, the Trooper Xis built to handle real-world conditions. All electrical components are IPX6-rated to withstand rain and splashes, though we do not recommend pressure washing or submerging the bike.
What is the difference between the Trooper and the Trooper X
Core Similarities:
- Technology: Both feature a Torque Sensor and IPX6 Water-Resistant rating for the entire bike.
- Battery: Both use premium 21700-cell 48V 15Ah removable batteries.
- Build: Both include 20" x 4.0" Fat Tires, Hydraulic Disc Brakes, and an 80mm Hydraulic Lock-out Front Fork.
Key Differences:
- Raw Power: The Trooper delivers 85Nm torque (1400W Peak), while the Trooper X kicks it up to a massive 100Nm torque (1600W Peak) for extreme climbing.
- Suspension: The Trooper uses a front-only suspension. The Trooper X features Full Suspension Unleashed, adding a professional DNM Air Shock with 35mm of travel at the rear for superior trail control.
How fast is shipping and is it free?
We provide Free Shipping to the lower 48 states. Orders are typically processed within 48 hours, and most riders receive their Trooper X within 3-5 business days.
What is the warranty coverage?
We stand behind the "Hardcore" build of the Trooper X with a 2-Year Warranty. We also offer lifetime technical support to keep your Trooper X running at peak performance.
What is your return policy?
We offer a30-Day Trial. If the Trooper isn't the right fit for your adventures, you can return it within 30 days. Please check our full Return Policy page for details.
